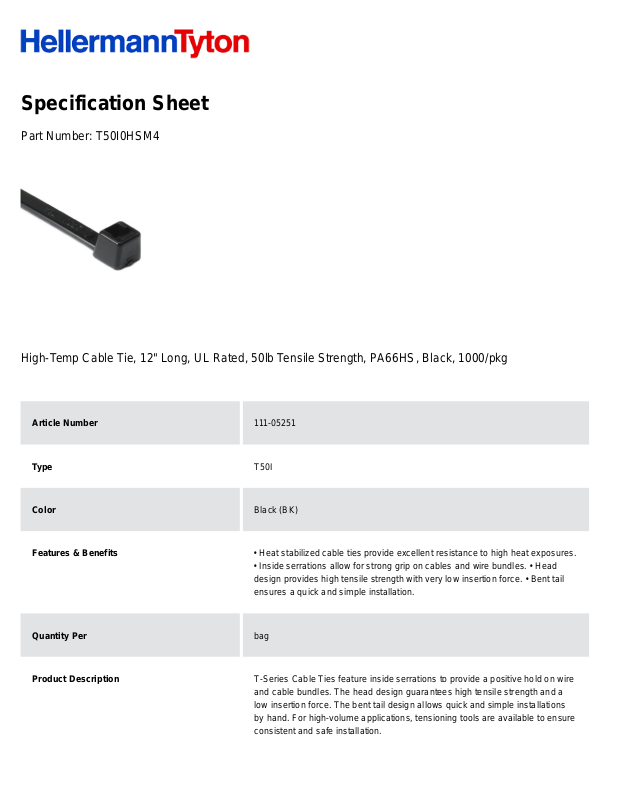

Specification Sheet
Part Number:
T50I0HSM4
High-Temp Cable Tie, 12" Long, UL Rated, 50lb Tensile Strength, PA66HS, Black, 1000/pkg
Article Number
111-05251
Type
T50I
Color
Black (BK)
Features & Benefits
• Heat stabilized cable ties provide excellent resistance to high heat exposures.
• Inside serrations allow for strong grip on cables and wire bundles. • Head
design provides high tensile strength with very low insertion force. • Bent tail
ensures a quick and simple installation.
Quantity Per
bag
Product Description
T-Series Cable Ties feature inside serrations to provide a positive hold on wire
and cable bundles. The head design guarantees high tensile strength and a
low insertion force. The bent tail design allows quick and simple installations
by hand. For high-volume applications, tensioning tools are available to ensure
consistent and safe installation.
Page 2
Short Description
High-Temp Cable Tie, 12" Long, UL Rated, 50lb Tensile Strength, PA66HS,
Black, 1000/pkg
Global Part Name
T50I-PA66HS-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225.0
Length L (Imperial)
12.0
Length L (Metric)
305.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
3.2
Bundle Diameter Max (Metric)
81.3
Page 3
Thickness T (Imperial)
0.047
Thickness T (Metric)
1.2
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
US MIL SPEC
MS3367-1-10
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
ROHS Complaint
Yes
Certification/Specification WEB
VG U48/04103 UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Listed (US and Canada)
Yes
UL Recognized (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
1000
Page 4
Package Quantity (Metric)
1000
Customs Number
3926909988
