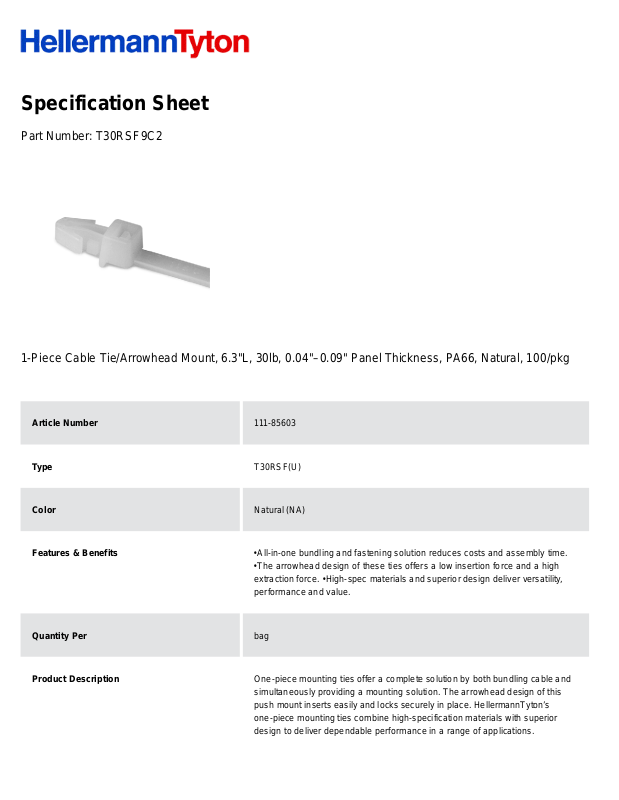

Specification Sheet
Part Number:
T30RSF9C2
1-Piece Cable Tie/Arrowhead Mount, 6.3"L, 30lb, 0.04"–0.09" Panel Thickness, PA66, Natural, 100/pkg
Article Number
111-85603
Type
T30RSF(U)
Color
Natural (NA)
Features & Benefits
•
All-in-one bundling and fastening solution reduces costs and assembly time.
•
The arrowhead design of these ties offers a low insertion force and a high
extraction force. •
High-spec materials and superior design deliver versatility,
performance and value.
Quantity Per
bag
Product Description
One-piece mounting ties offer a complete solution by both bundling cable and
simultaneously providing a mounting solution. The arrowhead design of this
push mount inserts easily and locks securely in place. HellermannTyton’s
one-piece mounting ties combine high-specification materials with superior
design to deliver dependable performance in a range of applications.
Short Description
1-Piece Cable Tie/Arrowhead Mount, 6.3"L, 30lb, 0.04"–0.09" Panel Thickness,
PA66, Natural, 100/pkg
Global Part Name
T30RSF(U)-PA66-NA
Minimum Tensile Strength (Imperial)
30.0
Minimum Tensile Strength (Metric)
136
Length L (Imperial)
6.3
Length L (Metric)
160.02
Fixation Method
Arrowhead
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.14
Width W (Metric)
3.6
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.6
Bundle Diameter Max (Imperial)
1.3
Bundle Diameter Max (Metric)
32.0
Thickness T (Imperial)
0.05
Thickness T (Metric)
1.2
Height H (Imperial)
.20
Height H (Metric)
5.80
Panel Thickness Min(Imperial)
0.03
Panel Thickness Max(Imperial)
0.09
Panel Thickness Min (Metric)
0.75
Panel Thickness Max (Metric)
2.1
Mounting Hole Diameter D (Imperial)
0.19 - 0.22
Mounting Hole Diameter D (Metric)
4.7 - 5.6 mm
Mounting Hole Diameter D Min (Imperial)
0.19
Mounting Hole Diameter D Max (Imperial)
0.22
Mounting Hole Diameter D Max (Metric)
5.6
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL | CAN/CSA-C22.2 no. 62275 UL | ANSI/UL 62275 UL | ANSI/UL 746B UL |
ANSI/UL 1565 UL | CAN/CSA-C22.2 no. 18.5
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
0.9
© 2019 HellermannTyton. All Rights Reserved.
