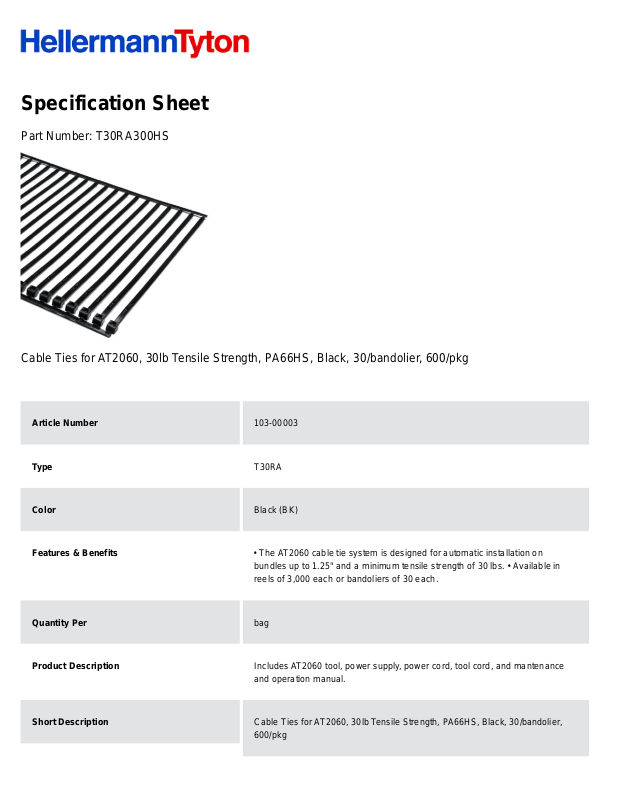

HellermannTyton T30RA300HS Specification Sheet

Specification Sheet
Part Number:
T30RA300HS
Cable Ties for AT2060, 30lb Tensile Strength, PA66HS, Black, 30/bandolier, 600/pkg
103-00003
Type
T30RA
Color
Black (BK)
Features & Benefits
• The AT2060 cable tie system is designed for automatic installation on
bundles up to 1.25" and a minimum tensile strength of 30 lbs. • Available in
reels of 3,000 each or bandoliers of 30 each.
Quantity Per
bag
Product Description
Includes AT2060 tool, power supply, power cord, tool cord, and mantenance
and operation manual.
Short Description
Cable Ties for AT2060, 30lb Tensile Strength, PA66HS, Black, 30/bandolier,
600/pkg
Global Part Name
T30RA-PA66HS-BK
Minimum Tensile Strength (Imperial)
30.0
Minimum Tensile Strength (Metric)
133.4
Length L (Imperial)
6.0
Length L (Metric)
152.4
Identification Plate Position
none
Reel Diameter (Imperial)
17.7
Reel Diameter (Metric))
450.0
Reel Width (Imperial)
7.197
Reel Width (Metric)
182.8
Voltage Range
27 Volt
Releasable Closure
No
Width W (Imperial)
0.14
Width W (Metric)
3.6
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
1.25
Bundle Diameter Max (Metric)
31.75
Thickness T (Imperial)
0.05
Thickness T (Metric)
1.2
Cycle Time
1.2 seconds
Power Supply
Electrical
Tension Force
Adjustable
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +275°F (-40°C to +135°C)
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
600
Package Quantity (Metric)
600
Customs Number
3926909988
1.8
Weight (Imperial)
3.9
Reel Weight (Imperial)
7
Reel Weight (Metric)
3.175
