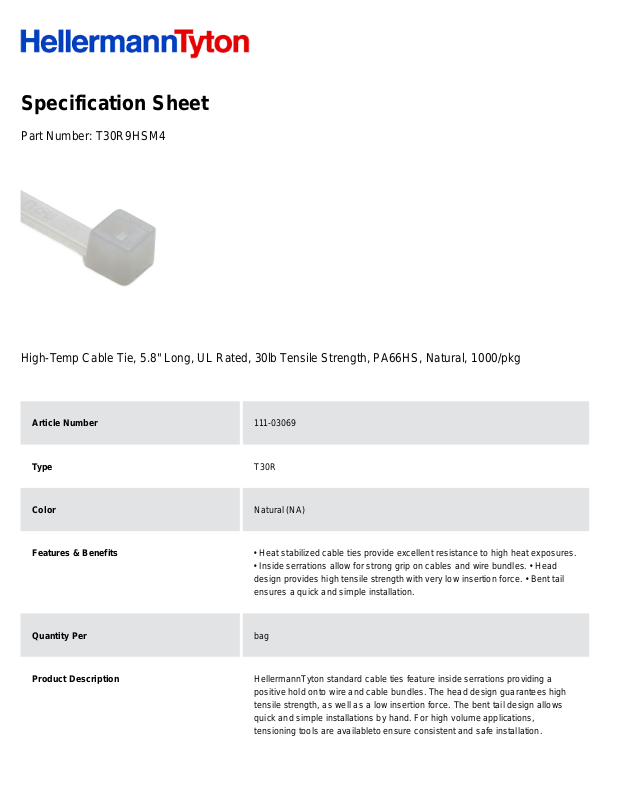

Specification Sheet
Part Number:
T30R9HSM4
High-Temp Cable Tie, 5.8" Long, UL Rated, 30lb Tensile Strength, PA66HS, Natural, 1000/pkg
Article Number
111-03069
Type
T30R
Color
Natural (NA)
Features & Benefits
• Heat stabilized cable ties provide excellent resistance to high heat exposures.
• Inside serrations allow for strong grip on cables and wire bundles. • Head
design provides high tensile strength with very low insertion force. • Bent tail
ensures a quick and simple installation.
Quantity Per
bag
Product Description
HellermannTyton standard cable ties feature inside serrations providing a
positive hold onto wire and cable bundles. The head design guarantees high
tensile strength, as well as a low insertion force. The bent tail design allows
quick and simple installations by hand. For high volume applications,
tensioning tools are availableto ensure consistent and safe installation.
Short Description
High-Temp Cable Tie, 5.8" Long, UL Rated, 30lb Tensile Strength, PA66HS,
Natural, 1000/pkg
Global Part Name
T30R-PA66HS-NA
Minimum Tensile Strength (Imperial)
30.0
Minimum Tensile Strength (Metric)
135.0
Length L (Imperial)
5.8
Length L (Metric)
147.32
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.14
Width W (Metric)
3.6
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
1.38
Bundle Diameter Max (Metric)
35.0
Thickness T (Metric)
1.1
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
US MIL SPEC
MS3367-1-10
MS3367-5-9
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
ROHS Complaint
Yes
Certification/Specification WEB
Bundesamt für Wehrtechnik | VG 95387 Part 4 Edition: 2008-12
UL-ZODZ2.E64139 Bundesamt für Wehrtechnik | VG 95387 Part 2 Edition:
2008-12
UL Recognized (US)
Yes
UL Listed (US and Canada)
Yes
UL Recognized (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Customs Number
3926909988
