Page 1

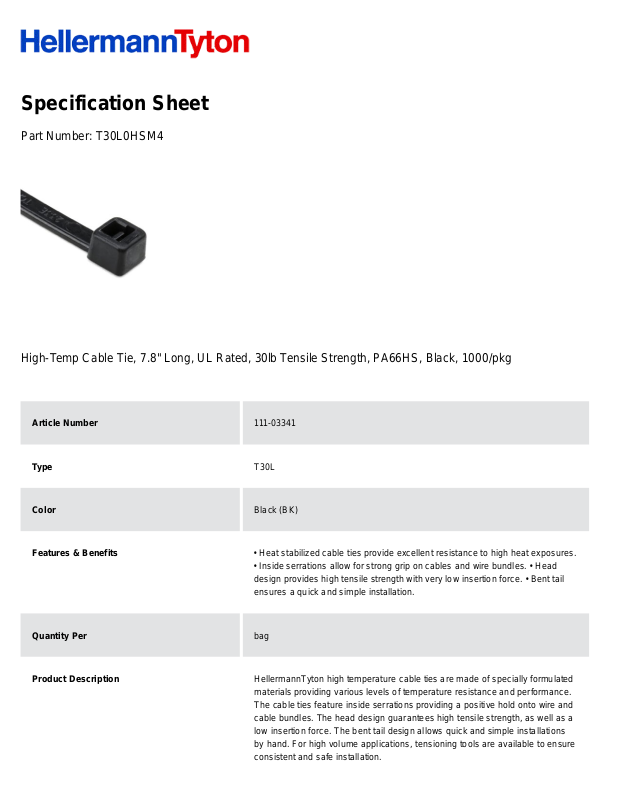

Specification Sheet
Part Number:
T30L0HSM4
High-Temp Cable Tie, 7.8" Long, UL Rated, 30lb Tensile Strength, PA66HS, Black, 1000/pkg
Article Number
111-03341
Type
T30L
Color
Black (BK)
Features & Benefits
• Heat stabilized cable ties provide excellent resistance to high heat exposures.
• Inside serrations allow for strong grip on cables and wire bundles. • Head
design provides high tensile strength with very low insertion force. • Bent tail
ensures a quick and simple installation.
Quantity Per
bag
Product Description
HellermannTyton high temperature cable ties are made of specially formulated
materials providing various levels of temperature resistance and performance.
The cable ties feature inside serrations providing a positive hold onto wire and
cable bundles. The head design guarantees high tensile strength, as well as a
low insertion force. The bent tail design allows quick and simple installations
by hand. For high volume applications, tensioning tools are available to ensure
consistent and safe installation.
Page 2
Short Description
High-Temp Cable Tie, 7.8" Long, UL Rated, 30lb Tensile Strength, PA66HS,
Black, 1000/pkg
Global Part Name
T30L-PA66HS-BK
Minimum Tensile Strength (Imperial)
30.0
Minimum Tensile Strength (Metric)
135.0
Length L (Imperial)
7.8
Length L (Metric)
198.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.14
Width W (Metric)
3.6
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
2.0
Bundle Diameter Max (Metric)
50.8
Page 3
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
ROHS Complaint
Yes
Certification/Specification WEB
UL-ZODZ2.E64139 VG U48/04103
UL Recognized (US)
Yes
UL Listed (US and Canada)
Yes
UL Recognized (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Customs Number
3926909988
