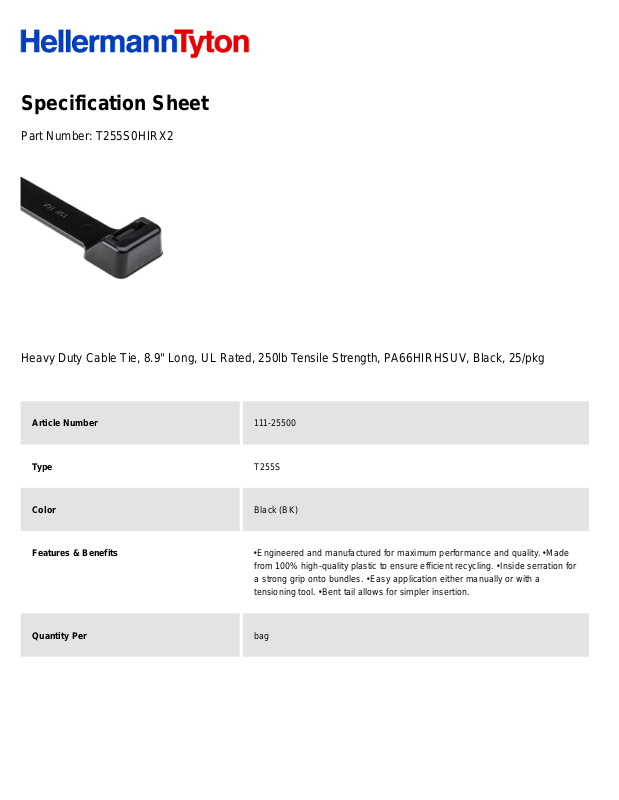

HellermannTyton T255S0HIRX2 Specification Sheet

Specification Sheet
Part Number:
T255S0HIRX2
Heavy Duty Cable Tie, 8.9" Long, UL Rated, 250lb Tensile Strength, PA66HIRHSUV, Black, 25/pkg
111-25500
Type
T255S
Color
Black (BK)
Features & Benefits
Engineered and manufactured for maximum performance and quality. •
Made
from 100% high-quality plastic to ensure efficient recycling. •
Inside serration for
a strong grip onto bundles. •
Easy application either manually or with a
tensioning tool. •
Bent tail allows for simpler insertion.
Quantity Per
bag
Product Description
HellermannTyton's T255 series heavy duty cable ties are ideal for bundles
demanding a strong cable tie that may also require a higher temperature rating
than the T250 series. These ties have a tensile strength of 250 lbs.
Heavy-Duty T-Series Cable Ties feature inside serrations to provide a positive
hold on wire and cable bundles. Durable head design guarantees high tensile
strength and a low insertion force. The bent tail allows quick and simple
installations by hand. For high-volume applications, tensioning tools are
available to ensure consistent and safe installation.
Short Description
Heavy Duty Cable Tie, 8.9" Long, UL Rated, 250lb Tensile Strength,
PA66HIRHSUV, Black, 25/pkg
Global Part Name
T255S-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
250.0
Minimum Tensile Strength (Metric)
1115.0
Length L (Imperial)
8.9
Length L (Metric)
225.0
Identification Plate Position
none
Releasable Closure
No
Variant
Inside Serrated
Width W (Imperial)
0.50
Width W (Metric)
12.7
Bundle Diameter Min (Imperial)
0.49
Bundle Diameter Min (Metric)
12.5
Bundle Diameter Max (Imperial)
2.2
Bundle Diameter Max (Metric)
55.9
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
Flammability
UL 94 HB
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
ROHS Complaint
Yes
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
25
Package Quantity (Metric)
25
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
