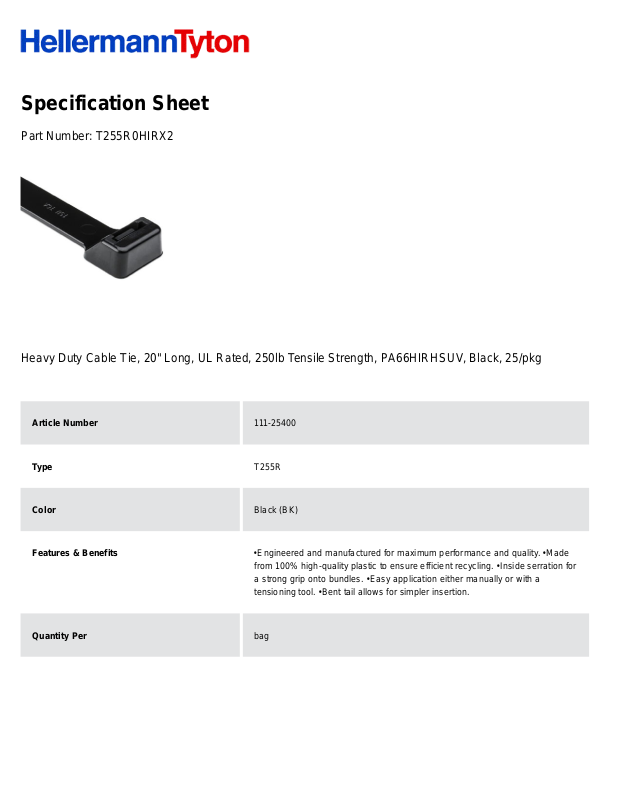

Specification Sheet
Part Number:
T255R0HIRX2
Heavy Duty Cable Tie, 20" Long, UL Rated, 250lb Tensile Strength, PA66HIRHSUV, Black, 25/pkg
Article Number
111-25400
Type
T255R
Color
Black (BK)
Features & Benefits
•
Engineered and manufactured for maximum performance and quality. •
Made
from 100% high-quality plastic to ensure efficient recycling. •
Inside serration for
a strong grip onto bundles. •
Easy application either manually or with a
tensioning tool. •
Bent tail allows for simpler insertion.
Quantity Per
bag
Product Description
HellermannTyton's T255 series heavy duty cable ties are ideal for bundles
demanding a strong cable tie that may also require a higher temperature rating
than the T250 series. These ties have a tensile strength of 250 lbs.
Heavy-Duty T-Series Cable Ties feature inside serrations to provide a positive
hold on wire and cable bundles. Durable head design guarantees high tensile
strength and a low insertion force. The bent tail allows quick and simple
installations by hand. For high-volume applications, tensioning tools are
available to ensure consistent and safe installation.
Short Description
Heavy Duty Cable Tie, 20" Long, UL Rated, 250lb Tensile Strength,
PA66HIRHSUV, Black, 25/pkg
Global Part Name
T255R-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
250.0
Minimum Tensile Strength (Metric)
1115.0
Length L (Imperial)
20.0
Length L (Metric)
508.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.50
Width W (Metric)
12.7
Bundle Diameter Min (Imperial)
0.49
Bundle Diameter Min (Metric)
12.5
Bundle Diameter Max (Imperial)
5.0
Bundle Diameter Max (Metric)
127.0
Thickness T (Imperial)
0.07
Thickness T (Metric)
1.8
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
Flammability
UL 94 HB
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
25
Package Quantity (Metric)
25
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
3.4
