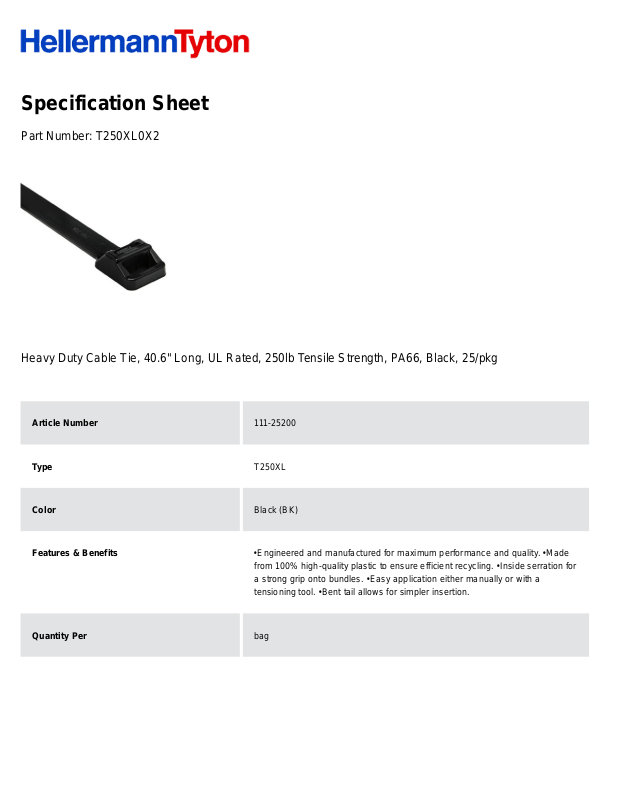

Specification Sheet
Part Number:
T250XL0X2
Heavy Duty Cable Tie, 40.6" Long, UL Rated, 250lb Tensile Strength, PA66, Black, 25/pkg
Article Number
111-25200
Type
T250XL
Color
Black (BK)
Features & Benefits
•
Engineered and manufactured for maximum performance and quality. •
Made
from 100% high-quality plastic to ensure efficient recycling. •
Inside serration for
a strong grip onto bundles. •
Easy application either manually or with a
tensioning tool. •
Bent tail allows for simpler insertion.
Quantity Per
bag
Product Description
These cable ties offer a high minimum tensile strength and have a buckle
feature which allows the end of the cable tie to be tucked away if necessary.
The buckle also snaps into HellermannTyton lashing tie mounts (LTM.)
T-Series Cable Ties feature inside serrations to provide a positive hold on wire
and cable bundles. The head design guarantees high tensile strength and a
low insertion force. The bent tail design allows quick and simple installations
by hand. For high-volume applications, tensioning tools are available to ensure
consistent and safe installation.
Short Description
Heavy Duty Cable Tie, 40.6" Long, UL Rated, 250lb Tensile Strength, PA66,
Black, 25/pkg
Global Part Name
T250XL-PA66-BK
Minimum Tensile Strength (Imperial)
250.0
Minimum Tensile Strength (Metric)
1115.0
Length L (Imperial)
40.6
Length L (Metric)
1030.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.49
Width W (Metric)
12.4
Bundle Diameter Min (Imperial)
0.47
Bundle Diameter Min (Metric)
12.0
Bundle Diameter Max (Imperial)
12.0
Bundle Diameter Max (Metric)
305.0
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL | ANSI/UL 1565 UL | ANSI/UL 746B UL | ANSI/UL 62275
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
25
Package Quantity (Metric)
25
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
15.436
