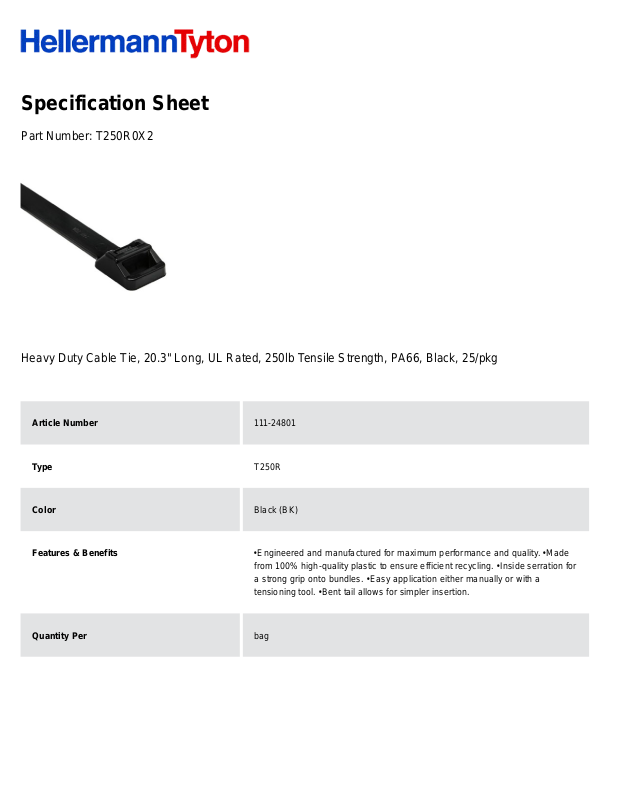

Specification Sheet
Part Number:
T250R0X2
Heavy Duty Cable Tie, 20.3" Long, UL Rated, 250lb Tensile Strength, PA66, Black, 25/pkg
Article Number
111-24801
Type
T250R
Color
Black (BK)
Features & Benefits
•
Engineered and manufactured for maximum performance and quality. •
Made
from 100% high-quality plastic to ensure efficient recycling. •
Inside serration for
a strong grip onto bundles. •
Easy application either manually or with a
tensioning tool. •
Bent tail allows for simpler insertion.
Quantity Per
bag
Product Description
These cable ties offer a high minimum tensile strength and have a buckle
feature which allows the end of the cable tie to be tucked away if necessary.
The buckle also snaps into HellermannTyton lashing tie mounts (LTM.)
T-Series Cable Ties feature inside serrations to provide a positive hold on wire
and cable bundles. The head design guarantees high tensile strength and a
low insertion force. The bent tail design allows quick and simple installations
by hand. For high-volume applications, tensioning tools are available to ensure
consistent and safe installation.
Short Description
Heavy Duty Cable Tie, 20.3" Long, UL Rated, 250lb Tensile Strength, PA66,
Black, 25/pkg
Global Part Name
T250R-PA66-BK
Minimum Tensile Strength (Imperial)
250.0
Minimum Tensile Strength (Metric)
1115.0
Length L (Imperial)
20.3
Length L (Metric)
515.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.49
Width W (Metric)
12.4
Bundle Diameter Min (Imperial)
0.47
Bundle Diameter Min (Metric)
12.0
Bundle Diameter Max (Imperial)
4.9
Bundle Diameter Max (Metric)
124.5
Thickness T (Metric)
1.9
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
ROHS Complaint
Yes
Certification/Specification WEB
UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
25
Package Quantity (Metric)
25
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
