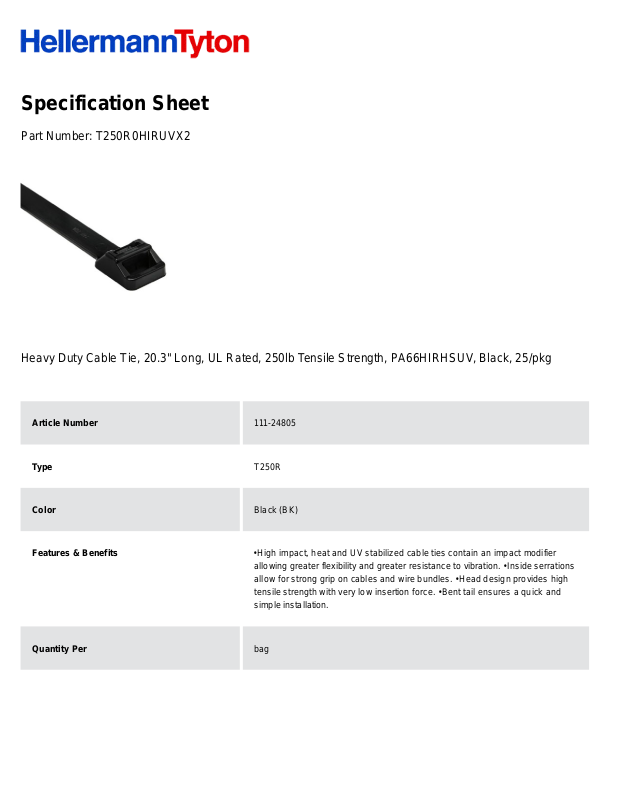

Specification Sheet
Part Number:
T250R0HIRUVX2
Heavy Duty Cable Tie, 20.3" Long, UL Rated, 250lb Tensile Strength, PA66HIRHSUV, Black, 25/pkg
Article Number
111-24805
Type
T250R
Color
Black (BK)
Features & Benefits
•
High impact, heat and UV stabilized cable ties contain an impact modifier
allowing greater flexibility and greater resistance to vibration. •
Inside serrations
allow for strong grip on cables and wire bundles. •
Head design provides high
tensile strength with very low insertion force. •
Bent tail ensures a quick and
simple installation.
Quantity Per
bag
Product Description
Manufactured from a specially formulated impact-resistant, heat and UV
stabilized PA66 material, these cable ties offer increased flexibility, impact
strength, heat and UV resistance to endure moisture fluctuations. T-Series
Cable Ties feature inside serrations to provide a positive hold on wire and
cable bundles. The head design guarantees high tensile strength and a low
insertion force. The bent tail design allows quick and simple installations by
hand. For high-volume applications, tensioning tools are available to ensure
consistent and safe installation.
Short Description
Heavy Duty Cable Tie, 20.3" Long, UL Rated, 250lb Tensile Strength,
PA66HIRHSUV, Black, 25/pkg
Global Part Name
T250R-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
250.0
Minimum Tensile Strength (Metric)
1115.0
Length L (Imperial)
20.3
Length L (Metric)
515.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.49
Width W (Metric)
12.4
Bundle Diameter Min (Imperial)
0.47
Bundle Diameter Min (Metric)
12.0
Bundle Diameter Max (Imperial)
4.9
Bundle Diameter Max (Metric)
124.5
Thickness T (Imperial)
0.075
Thickness T (Metric)
1.9
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
Flammability
UL 94 HB
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL | ANSI/UL 62275 UL | ANSI/UL 746B UL | ANSI/UL 1565
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
25
Package Quantity (Metric)
25
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
16.33
