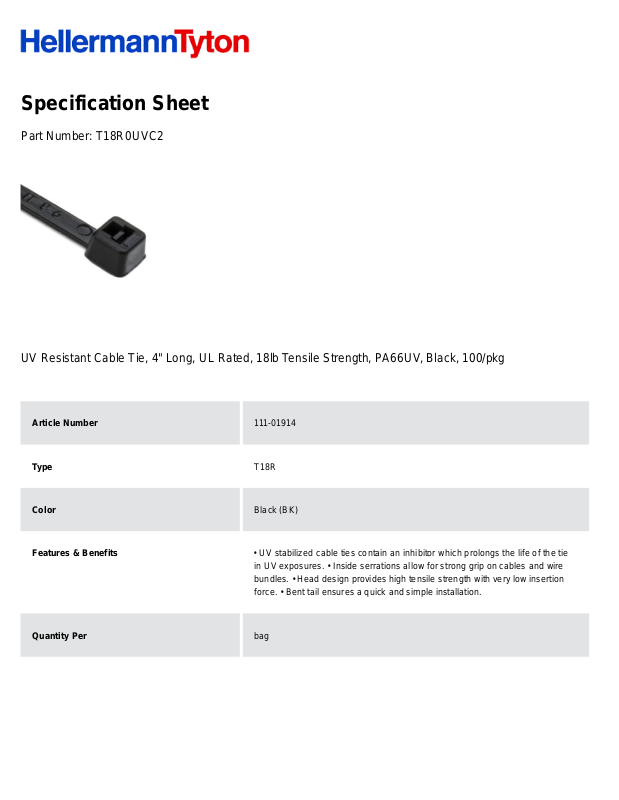

Page 1
Specification Sheet
Part Number:
T18R0UVC2
UV Resistant Cable Tie, 4" Long, UL Rated, 18lb Tensile Strength, PA66UV, Black, 100/pkg
Article Number
111-01914
Type
T18R
Color
Black (BK)
Features & Benefits
• UV stabilized cable ties contain an inhibitor which prolongs the life of the tie
in UV exposures. • Inside serrations allow for strong grip on cables and wire
bundles. • Head design provides high tensile strength with very low insertion
force. • Bent tail ensures a quick and simple installation.
Quantity Per
bag
Page 2
Product Description
Used in the solar industry and other applications, HellermannTyton offers cable
ties made of UV stabilized PA66UV material. This material provides additional
protection against UV radiation for long-term outdoor use and is available in
various styles, tensile strengths, and bundle diameters. T-Series Cable Ties
feature inside serrations to provide a positive hold on wire and cable bundles.
The head design guarantees high tensile strength and a low insertion force.
The bent tail design allows quick and simple installations by hand. For
high-volume applications, tensioning tools are available to ensure consistent
and safe installation.
Short Description
UV Resistant Cable Tie, 4" Long, UL Rated, 18lb Tensile Strength, PA66UV,
Black, 100/pkg
Global Part Name
T18R-PA66UV-BK
Minimum Tensile Strength (Imperial)
18.0
Minimum Tensile Strength (Metric)
80.0
Length L (Imperial)
4.0
Length L (Metric)
101.6
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.10
Width W (Metric)
2.5
Bundle Diameter Min (Imperial)
0.06
Page 3
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
0.87
Bundle Diameter Max (Metric)
22.0
Thickness T (Metric)
1.0
Height H (Metric)
3.7
Material
Polyamide 6.6 UV-resistant (PA66UV)
Material Shortcut
PA66UV
US MIL SPEC
MS3367-4-0
SAE-AS81531
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
CAGE Code 53421 Bundesamt für Wehrtechnik | VG 95387 Part 4 Edition:
2008-12
UL Recognized (US)
Page 4
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
