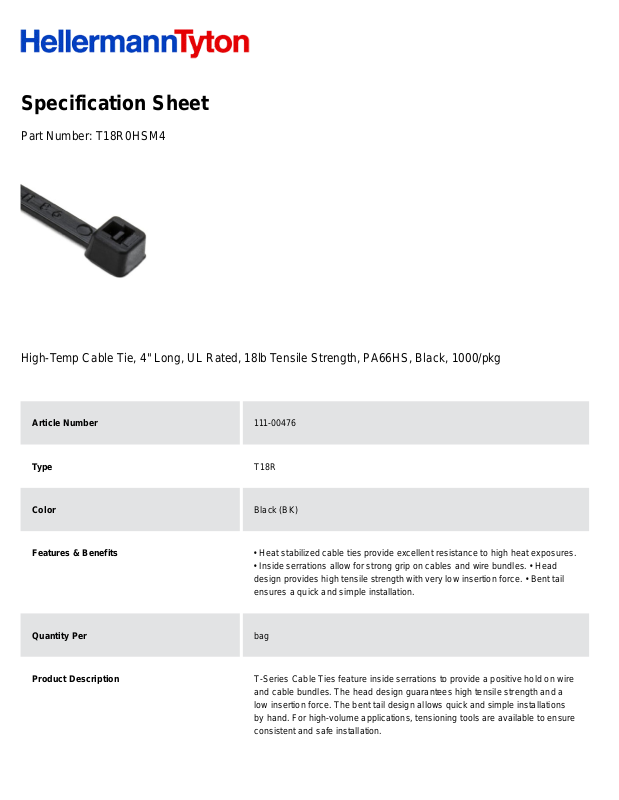

Specification Sheet
Part Number:
T18R0HSM4
High-Temp Cable Tie, 4" Long, UL Rated, 18lb Tensile Strength, PA66HS, Black, 1000/pkg
Article Number
111-00476
Type
T18R
Color
Black (BK)
Features & Benefits
• Heat stabilized cable ties provide excellent resistance to high heat exposures.
• Inside serrations allow for strong grip on cables and wire bundles. • Head
design provides high tensile strength with very low insertion force. • Bent tail
ensures a quick and simple installation.
Quantity Per
bag
Product Description
T-Series Cable Ties feature inside serrations to provide a positive hold on wire
and cable bundles. The head design guarantees high tensile strength and a
low insertion force. The bent tail design allows quick and simple installations
by hand. For high-volume applications, tensioning tools are available to ensure
consistent and safe installation.
Page 2
Short Description
High-Temp Cable Tie, 4" Long, UL Rated, 18lb Tensile Strength, PA66HS,
Black, 1000/pkg
Global Part Name
T18R-PA66HS-BK
Minimum Tensile Strength (Imperial)
18.0
Minimum Tensile Strength (Metric)
80.0
Length L (Imperial)
4.0
Length L (Metric)
101.6
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.10
Width W (Metric)
2.5
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
0.87
Bundle Diameter Max (Metric)
22.0
Page 3
Thickness T (Metric)
1.0
Height H (Metric)
3.7
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
US MIL SPEC
MS3367-1-10
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
ROHS Complaint
Yes
Certification/Specification WEB
UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Listed (US and Canada)
Yes
UL Recognized (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
1000
Page 4
Package Quantity (Metric)
1000
Customs Number
3926909988
