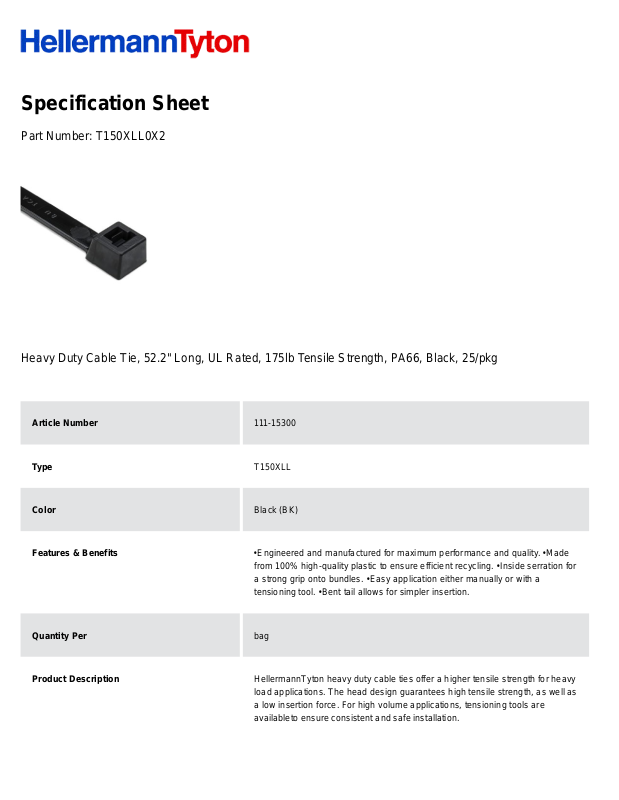

Specification Sheet
Part Number:
T150XLL0X2
Heavy Duty Cable Tie, 52.2" Long, UL Rated, 175lb Tensile Strength, PA66, Black, 25/pkg
Article Number
111-15300
Type
T150XLL
Color
Black (BK)
Features & Benefits
•
Engineered and manufactured for maximum performance and quality. •
Made
from 100% high-quality plastic to ensure efficient recycling. •
Inside serration for
a strong grip onto bundles. •
Easy application either manually or with a
tensioning tool. •
Bent tail allows for simpler insertion.
Quantity Per
bag
Product Description
HellermannTyton heavy duty cable ties offer a higher tensile strength for heavy
load applications. The head design guarantees high tensile strength, as well as
a low insertion force. For high volume applications, tensioning tools are
availableto ensure consistent and safe installation.
Short Description
Heavy Duty Cable Tie, 52.2" Long, UL Rated, 175lb Tensile Strength, PA66,
Black, 25/pkg
Global Part Name
T150XLL-PA66-BK
Minimum Tensile Strength (Imperial)
175.0
Minimum Tensile Strength (Metric)
780.0
Length L (Imperial)
52.2
Length L (Metric)
1325.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.35
Width W (Metric)
8.9
Bundle Diameter Min (Imperial)
6.0
Bundle Diameter Min (Metric)
152.0
Bundle Diameter Max (Imperial)
16.0
Bundle Diameter Max (Metric)
406.4
Thickness T (Imperial)
0.083
Thickness T (Metric)
2.1
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL | ANSI/UL 1565 UL | ANSI/UL 62275 UL | ANSI/UL 746B
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
25
Package Quantity (Metric)
25
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
20.8
