Page 1

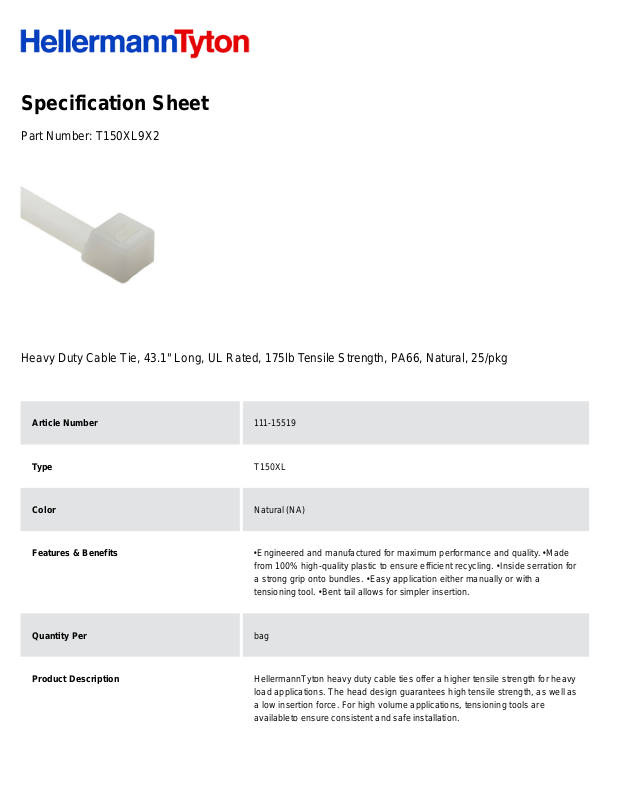

Specification Sheet
Part Number:
T150XL9X2
Heavy Duty Cable Tie, 43.1" Long, UL Rated, 175lb Tensile Strength, PA66, Natural, 25/pkg
Article Number
111-15519
Type
T150XL
Color
Natural (NA)
Features & Benefits
•
Engineered and manufactured for maximum performance and quality. •
Made
from 100% high-quality plastic to ensure efficient recycling. •
Inside serration for
a strong grip onto bundles. •
Easy application either manually or with a
tensioning tool. •
Bent tail allows for simpler insertion.
Quantity Per
bag
Product Description
HellermannTyton heavy duty cable ties offer a higher tensile strength for heavy
load applications. The head design guarantees high tensile strength, as well as
a low insertion force. For high volume applications, tensioning tools are
availableto ensure consistent and safe installation.
Page 2
Short Description
Heavy Duty Cable Tie, 43.1" Long, UL Rated, 175lb Tensile Strength, PA66,
Natural, 25/pkg
Global Part Name
T150XL-PA66-NA
Minimum Tensile Strength (Imperial)
175.0
Minimum Tensile Strength (Metric)
780.0
Length L (Imperial)
43.1
Length L (Metric)
1095.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.35
Width W (Metric)
8.9
Bundle Diameter Min (Imperial)
6.0
Bundle Diameter Min (Metric)
152.0
Bundle Diameter Max (Imperial)
13.0
Bundle Diameter Max (Metric)
330.2
Page 3
Thickness T (Imperial)
0.083
Thickness T (Metric)
2.1
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL | ANSI/UL 746B UL | ANSI/UL 1565 UL | ANSI/UL 62275
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
25
Package Quantity (Metric)
25
Customs Number
3926909988
Page 4
Content Unit(BMEcat)
pcs.
Weight (Metric)
20.8
