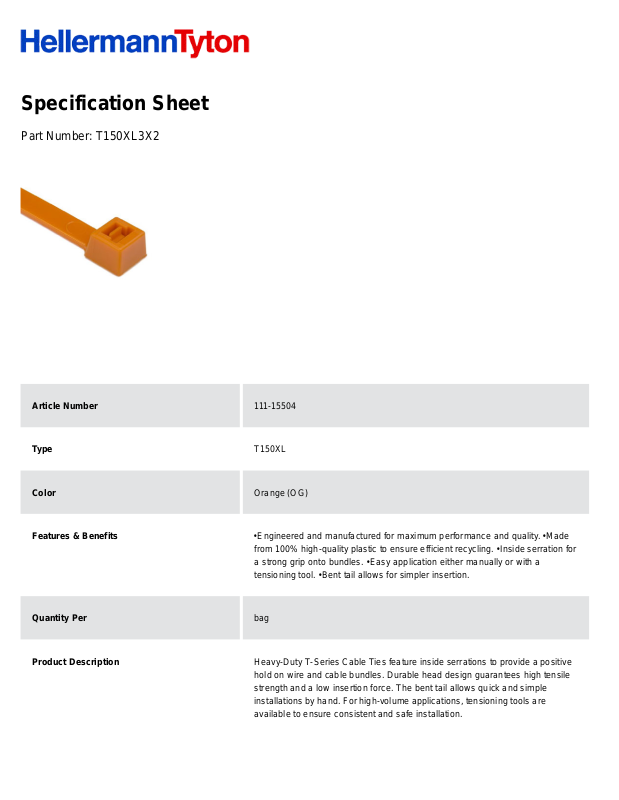

Specification Sheet
Part Number:
T150XL3X2
Article Number
111-15504
Type
T150XL
Color
Orange (OG)
Features & Benefits
•
Engineered and manufactured for maximum performance and quality. •
Made
from 100% high-quality plastic to ensure efficient recycling. •
Inside serration for
a strong grip onto bundles. •
Easy application either manually or with a
tensioning tool. •
Bent tail allows for simpler insertion.
Quantity Per
bag
Product Description
Heavy-Duty T-Series Cable Ties feature inside serrations to provide a positive
hold on wire and cable bundles. Durable head design guarantees high tensile
strength and a low insertion force. The bent tail allows quick and simple
installations by hand. For high-volume applications, tensioning tools are
available to ensure consistent and safe installation.
Short Description
Heavy Duty Cable Tie, 43.1" Long, UL Rated, 175lb Tensile Strength, PA66,
Orange, 25/pkg
Global Part Name
T150XL-PA66-OG
Minimum Tensile Strength (Imperial)
175.0
Minimum Tensile Strength (Metric)
780.0
Length L (Imperial)
43.1
Length L (Metric)
1095.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.35
Width W (Metric)
8.9
Bundle Diameter Min (Imperial)
6.0
Bundle Diameter Min (Metric)
152.0
Bundle Diameter Max (Imperial)
13.0
Bundle Diameter Max (Metric)
330.2
