Page 1

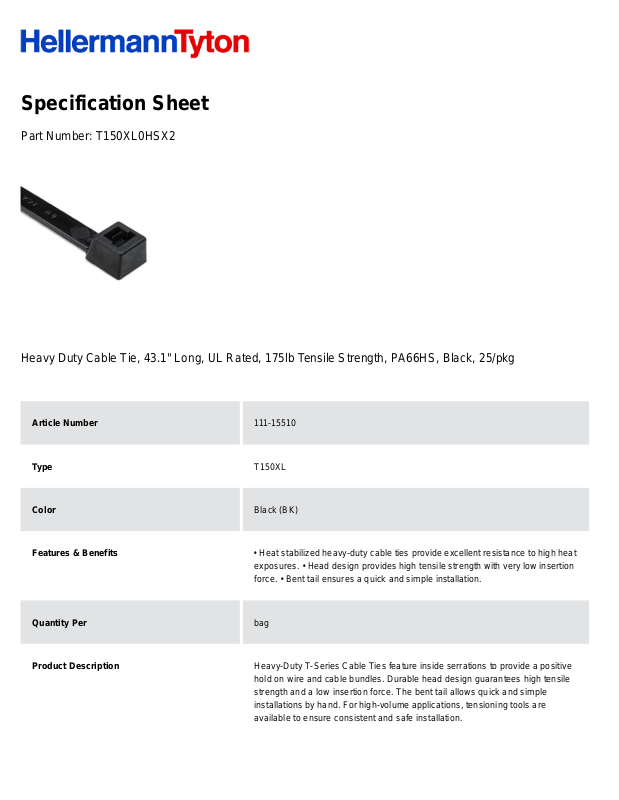

Specification Sheet
Part Number:
T150XL0HSX2
Heavy Duty Cable Tie, 43.1" Long, UL Rated, 175lb Tensile Strength, PA66HS, Black, 25/pkg
Article Number
111-15510
Type
T150XL
Color
Black (BK)
Features & Benefits
• Heat stabilized heavy-duty cable ties provide excellent resistance to high heat
exposures. • Head design provides high tensile strength with very low insertion
force. • Bent tail ensures a quick and simple installation.
Quantity Per
bag
Product Description
Heavy-Duty T-Series Cable Ties feature inside serrations to provide a positive
hold on wire and cable bundles. Durable head design guarantees high tensile
strength and a low insertion force. The bent tail allows quick and simple
installations by hand. For high-volume applications, tensioning tools are
available to ensure consistent and safe installation.
Page 2
Short Description
Heavy Duty Cable Tie, 43.1" Long, UL Rated, 175lb Tensile Strength, PA66HS,
Black, 25/pkg
Global Part Name
T150XL-PA66HS-BK
Minimum Tensile Strength (Imperial)
175.0
Minimum Tensile Strength (Metric)
780.0
Length L (Imperial)
43.1
Length L (Metric)
1095.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.35
Width W (Metric)
8.9
Bundle Diameter Min (Imperial)
6.0
Bundle Diameter Min (Metric)
152.0
Bundle Diameter Max (Imperial)
13.0
Bundle Diameter Max (Metric)
330.2
Page 3
Thickness T (Imperial)
0.083
Thickness T (Metric)
2.1
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL | ANSI/UL 62275 UL | ANSI/UL 1565 UL | ANSI/UL 746B
UL Recognized (US)
Yes
UL Listed (US and Canada)
Yes
UL Recognized (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
25
Page 4
Package Quantity (Metric)
25
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
20.8
