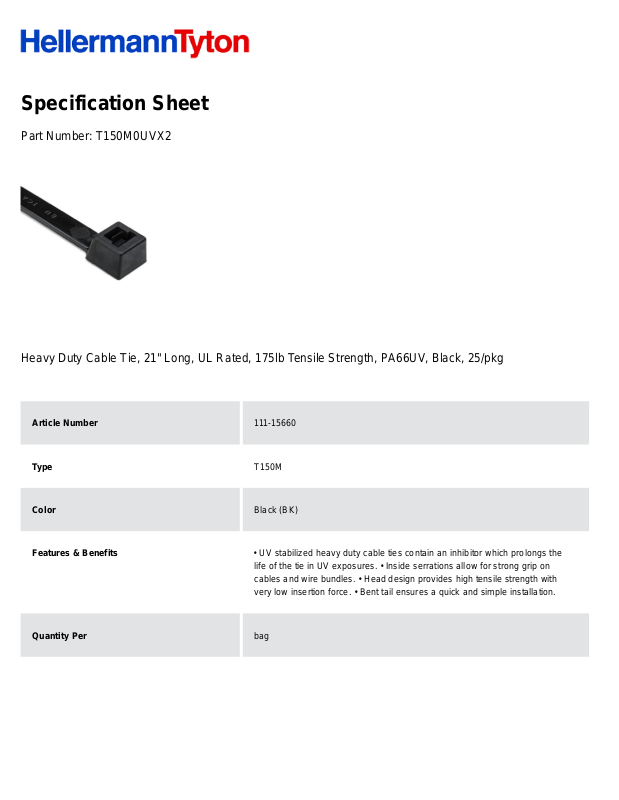

Specification Sheet
Part Number:
T150M0UVX2
Heavy Duty Cable Tie, 21" Long, UL Rated, 175lb Tensile Strength, PA66UV, Black, 25/pkg
Article Number
111-15660
Type
T150M
Color
Black (BK)
Features & Benefits
• UV stabilized heavy duty cable ties contain an inhibitor which prolongs the
life of the tie in UV exposures. • Inside serrations allow for strong grip on
cables and wire bundles. • Head design provides high tensile strength with
very low insertion force. • Bent tail ensures a quick and simple installation.
Quantity Per
bag
Product Description
Used in the solar industry and other applications, HellermannTyton offers cable
ties made of UV stabilized PA66UV material. This material provides additional
protection against UV radiation for long-term outdoor use and is available in
various styles, tensile strengths, and bundle diameters. T-Series Cable Ties
feature inside serrations to provide a positive hold on wire and cable bundles.
The head design guarantees high tensile strength and a low insertion force.
The bent tail design allows quick and simple installations by hand. For
high-volume applications, tensioning tools are available to ensure consistent
and safe installation.
Short Description
Heavy Duty Cable Tie, 21" Long, UL Rated, 175lb Tensile Strength, PA66UV,
Black, 25/pkg
Global Part Name
T150M-PA66UV-BK
Minimum Tensile Strength (Imperial)
175.0
Minimum Tensile Strength (Metric)
780.0
Length L (Imperial)
21.0
Length L (Metric)
530.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.35
Width W (Metric)
8.9
Bundle Diameter Min (Imperial)
0.32
