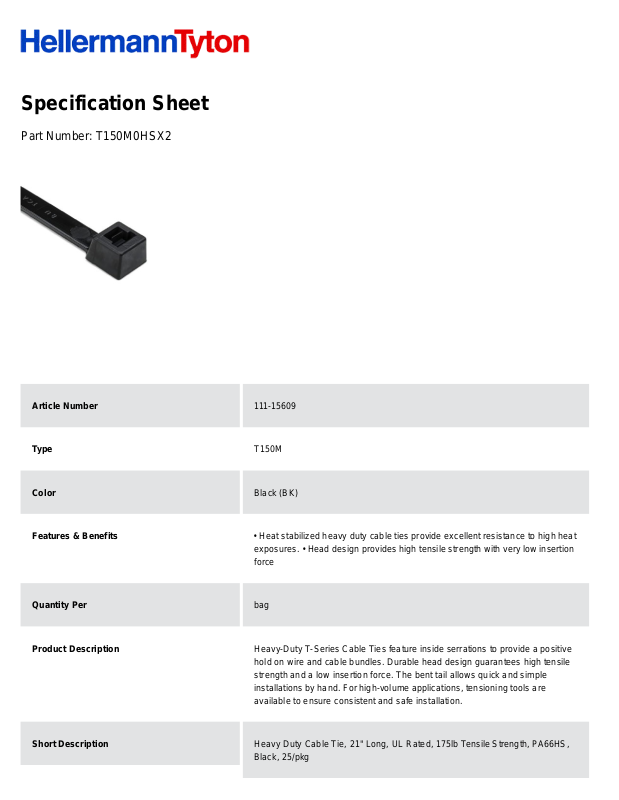

Page 1
Specification Sheet
Part Number:
T150M0HSX2
Article Number
111-15609
Type
T150M
Color
Black (BK)
Features & Benefits
• Heat stabilized heavy duty cable ties provide excellent resistance to high heat
exposures. • Head design provides high tensile strength with very low insertion
force
Quantity Per
bag
Product Description
Heavy-Duty T-Series Cable Ties feature inside serrations to provide a positive
hold on wire and cable bundles. Durable head design guarantees high tensile
strength and a low insertion force. The bent tail allows quick and simple
installations by hand. For high-volume applications, tensioning tools are
available to ensure consistent and safe installation.
Short Description
Heavy Duty Cable Tie, 21" Long, UL Rated, 175lb Tensile Strength, PA66HS,
Black, 25/pkg
Page 2
Global Part Name
T150M-PA66HS-BK
Minimum Tensile Strength (Imperial)
175.0
Minimum Tensile Strength (Metric)
780.0
Length L (Imperial)
21.0
Length L (Metric)
530.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.35
Width W (Metric)
8.9
Bundle Diameter Min (Imperial)
0.32
Bundle Diameter Min (Metric)
8.0
Bundle Diameter Max (Imperial)
5.9
Bundle Diameter Max (Metric)
150.0
Thickness T (Imperial)
0.079
Thickness T (Metric)
2
Page 3
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL | ANSI/UL 1565 UL | ANSI/UL 746B UL | ANSI/UL 62275
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
25
Package Quantity (Metric)
25
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
