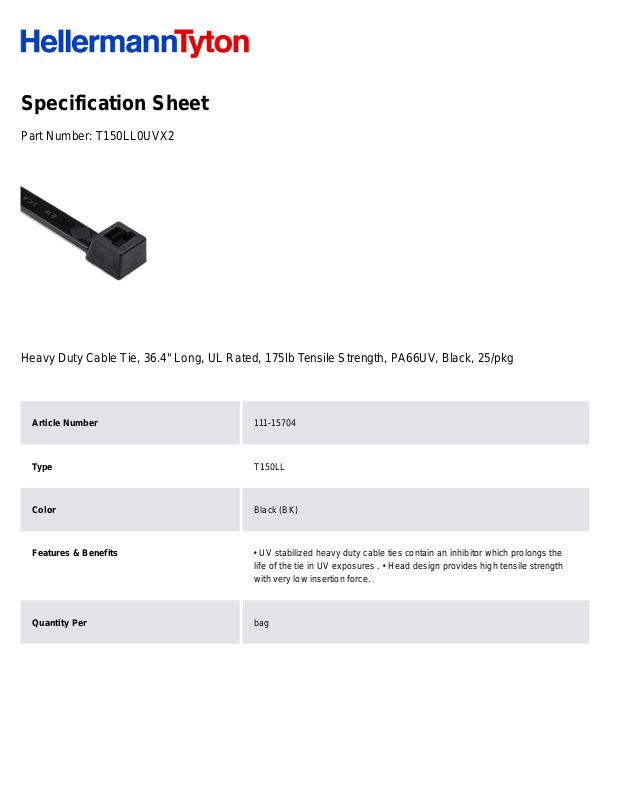

Specification Sheet
Part Number:
T150LL0UVX2
Heavy Duty Cable Tie, 36.4" Long, UL Rated, 175lb Tensile Strength, PA66UV, Black, 25/pkg
Article Number
111-15704
Type
T150LL
Color
Black (BK)
Features & Benefits
• UV stabilized heavy duty cable ties contain an inhibitor which prolongs the
life of the tie in UV exposures . • Head design provides high tensile strength
with very low insertion force.
Quantity Per
bag
Page 2
Product Description
Used in the solar industry and other applications, HellermannTyton offers cable
ties made of UV stabilized PA66UV material. This material provides additional
protection against UV radiation for long-term outdoor use and is available in
various styles, tensile strengths, and bundle diameters. T-Series Cable Ties
feature inside serrations to provide a positive hold on wire and cable bundles.
The head design guarantees high tensile strength and a low insertion force.
The bent tail design allows quick and simple installations by hand. For
high-volume applications, tensioning tools are available to ensure consistent
and safe installation.
Short Description
Heavy Duty Cable Tie, 36.4" Long, UL Rated, 175lb Tensile Strength, PA66UV,
Black, 25/pkg
Global Part Name
T150LL-PA66UV-BK
Minimum Tensile Strength (Imperial)
175.0
Minimum Tensile Strength (Metric)
780.0
Length L (Imperial)
36.4
Length L (Metric)
925.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.35
Width W (Metric)
8.9
Bundle Diameter Min (Imperial)
0.32
Page 3
Bundle Diameter Min (Metric)
8.0
Bundle Diameter Max (Imperial)
10.8
Bundle Diameter Max (Metric)
274.3
Material
Polyamide 6.6 UV-resistant (PA66UV)
Material Shortcut
PA66UV
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
ROHS Complaint
Yes
Certification/Specification WEB
UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
25
Package Quantity (Metric)
25
Customs Number
3926909988
Page 4
Content Unit(BMEcat)
pcs.
