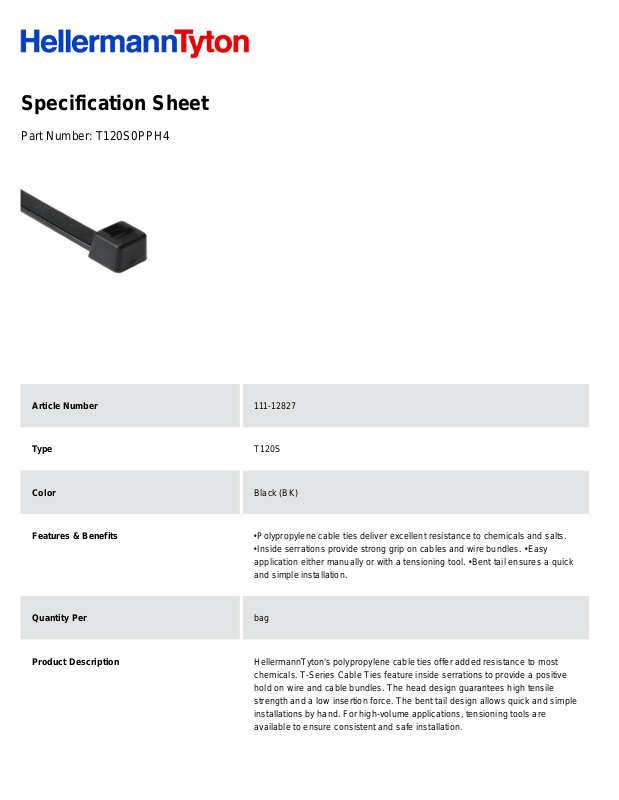

Specification Sheet
Part Number:
T120S0PPH4
Article Number
111-12827
Type
T120S
Color
Black (BK)
Features & Benefits
•
Polypropylene cable ties deliver excellent resistance to chemicals and salts.
•
Inside serrations provide strong grip on cables and wire bundles. •
Easy
application either manually or with a tensioning tool. •
Bent tail ensures a quick
and simple installation.
Quantity Per
bag
Product Description
HellermannTyton's polypropylene cable ties offer added resistance to most
chemicals. T-Series Cable Ties feature inside serrations to provide a positive
hold on wire and cable bundles. The head design guarantees high tensile
strength and a low insertion force. The bent tail design allows quick and simple
installations by hand. For high-volume applications, tensioning tools are
available to ensure consistent and safe installation.
Short Description
Heavy Duty Cable Tie, 8.9" Long, 60lb Tensile Strength, PP, Black, 500/pkg
Global Part Name
T120S-PP-BK
Minimum Tensile Strength (Imperial)
60.0
Minimum Tensile Strength (Metric)
267.0
Length L (Imperial)
8.9
Length L (Metric)
226.06
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.30
Width W (Metric)
7.6
Bundle Diameter Min (Imperial)
0.50
Bundle Diameter Min (Metric)
12.7
Bundle Diameter Max (Imperial)
2.2
Bundle Diameter Max (Metric)
55.9
Thickness T (Imperial)
0.06
Thickness T (Metric)
1.6
Material
Polypropylene (PP)
Material Shortcut
PP
Flammability
UL 94 HB
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +239°F (-40°C to +115°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
