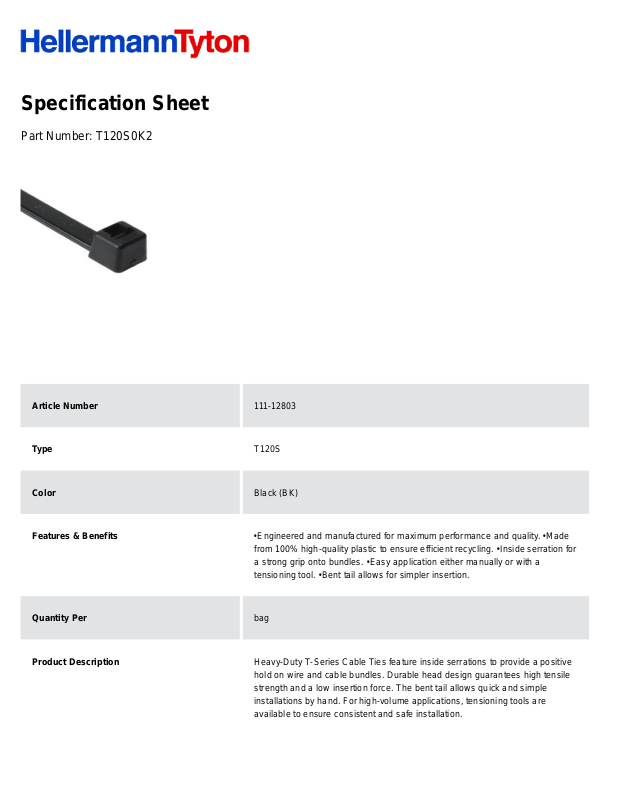

Specification Sheet
Part Number:
T120S0K2
Article Number
111-12803
Type
T120S
Color
Black (BK)
Features & Benefits
•
Engineered and manufactured for maximum performance and quality. •
Made
from 100% high-quality plastic to ensure efficient recycling. •
Inside serration for
a strong grip onto bundles. •
Easy application either manually or with a
tensioning tool. •
Bent tail allows for simpler insertion.
Quantity Per
bag
Product Description
Heavy-Duty T-Series Cable Ties feature inside serrations to provide a positive
hold on wire and cable bundles. Durable head design guarantees high tensile
strength and a low insertion force. The bent tail allows quick and simple
installations by hand. For high-volume applications, tensioning tools are
available to ensure consistent and safe installation.
Page 2
Short Description
Heavy Duty Cable Tie, 8.9" Long, UL Rated, 120lb Tensile Strength, PA66,
Black, 50/pkg
Global Part Name
T120S-PA66-BK
Minimum Tensile Strength (Imperial)
120.0
Minimum Tensile Strength (Metric)
535.0
Length L (Imperial)
8.9
Length L (Metric)
226.06
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.30
Width W (Metric)
7.6
Bundle Diameter Min (Imperial)
0.20
Bundle Diameter Min (Metric)
5.0
Bundle Diameter Max (Imperial)
2.2
Bundle Diameter Max (Metric)
55.9
Page 3
Thickness T (Metric)
1.6
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
ROHS Complaint
Yes
Certification/Specification WEB
UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Listed (US and Canada)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
50
Package Quantity (Metric)
50
Customs Number
3926909988
