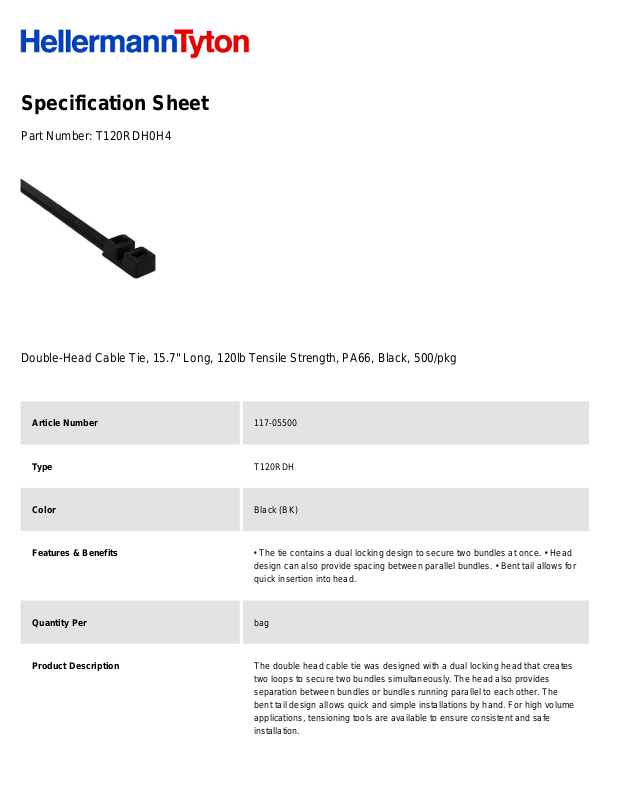

Specification Sheet
Part Number:
T120RDH0H4
Double-Head Cable Tie, 15.7" Long, 120lb Tensile Strength, PA66, Black, 500/pkg
Article Number
117-05500
Type
T120RDH
Color
Black (BK)
Features & Benefits
• The tie contains a dual locking design to secure two bundles at once. • Head
design can also provide spacing between parallel bundles. • Bent tail allows for
quick insertion into head.
Quantity Per
bag
Product Description
The double head cable tie was designed with a dual locking head that creates
two loops to secure two bundles simultaneously. The head also provides
separation between bundles or bundles running parallel to each other. The
bent tail design allows quick and simple installations by hand. For high volume
applications, tensioning tools are available to ensure consistent and safe
installation.
Short Description
Double-Head Cable Tie, 15.7" Long, 120lb Tensile Strength, PA66, Black,
500/pkg
Global Part Name
T120RDH-PA66-BK
Minimum Tensile Strength (Imperial)
120.0
Minimum Tensile Strength (Metric)
535.0
Length L (Imperial)
15.7
Length L (Metric)
398.0
Identification Plate Position
none
Releasable Closure
No
Variant
Inside Serrated
Width W (Imperial)
0.3
Width W (Metric)
7.6
Bundle Diameter Min (Imperial)
0.19
Bundle Diameter Min (Metric)
4.6
Bundle Diameter Max (Imperial)
2.0
Bundle Diameter Max (Metric)
50.8
Bundle Diameter 1st Loop Max (Imperial)
4.0
Bundle Diameter 1st Loop Max (Metric)
101.6
Bundle Diameter 2nd Loop Max (Imperial)
2.0
Bundle Diameter 2nd Loop Max (Metric)
50.8
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
