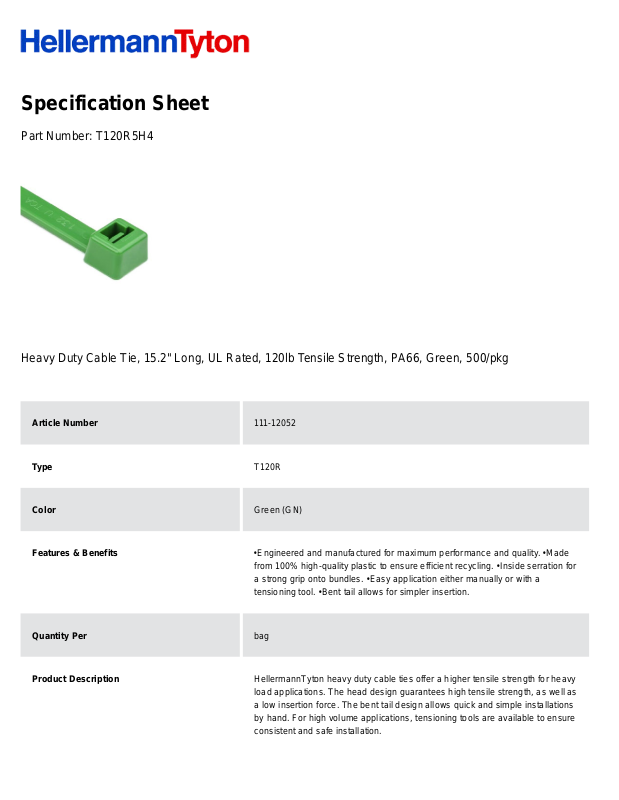

Specification Sheet
Part Number:
T120R5H4
Heavy Duty Cable Tie, 15.2" Long, UL Rated, 120lb Tensile Strength, PA66, Green, 500/pkg
Article Number
111-12052
Type
T120R
Color
Green (GN)
Features & Benefits
•
Engineered and manufactured for maximum performance and quality. •
Made
from 100% high-quality plastic to ensure efficient recycling. •
Inside serration for
a strong grip onto bundles. •
Easy application either manually or with a
tensioning tool. •
Bent tail allows for simpler insertion.
Quantity Per
bag
Product Description
HellermannTyton heavy duty cable ties offer a higher tensile strength for heavy
load applications. The head design guarantees high tensile strength, as well as
a low insertion force. The bent tail design allows quick and simple installations
by hand. For high volume applications, tensioning tools are available to ensure
consistent and safe installation.
Short Description
Heavy Duty Cable Tie, 15.2" Long, UL Rated, 120lb Tensile Strength, PA66,
Green, 500/pkg
Global Part Name
T120R-PA66-GN
Minimum Tensile Strength (Imperial)
120.0
Minimum Tensile Strength (Metric)
535.0
Length L (Imperial)
15.2
Length L (Metric)
387.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.30
Width W (Metric)
7.6
Bundle Diameter Min (Imperial)
0.20
Bundle Diameter Min (Metric)
5.0
Bundle Diameter Max (Imperial)
4.1
Bundle Diameter Max (Metric)
104.1
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
US MIL SPEC
MS3367-3-5
SAE-AS33671
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
ROHS Complaint
Yes
Certification/Specification WEB
CAGE Code 53421 UL-ZODZ.E64139
UL Recognized (US)
Yes
UL Listed (US and Canada)
Yes
UL Recognized (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
