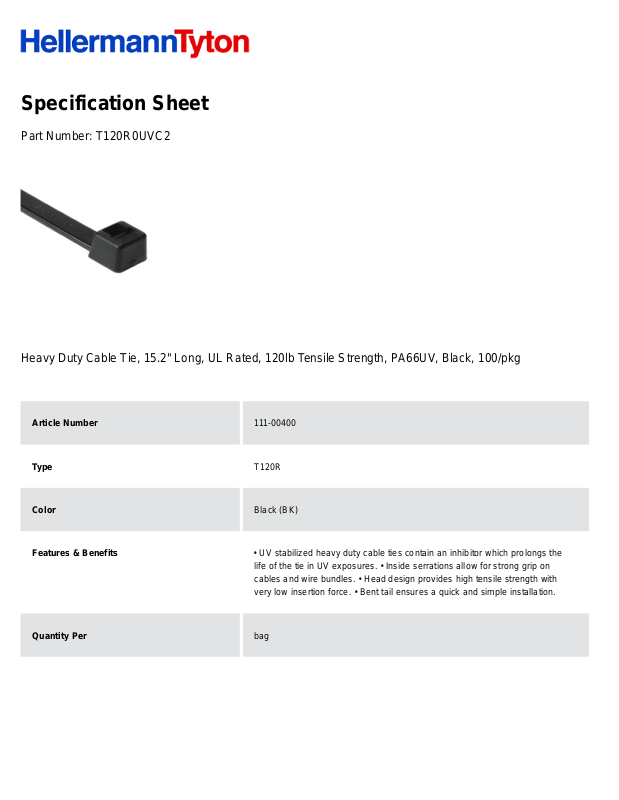

Page 1
Specification Sheet
Part Number:
T120R0UVC2
Heavy Duty Cable Tie, 15.2" Long, UL Rated, 120lb Tensile Strength, PA66UV, Black, 100/pkg
Article Number
111-00400
Type
T120R
Color
Black (BK)
Features & Benefits
• UV stabilized heavy duty cable ties contain an inhibitor which prolongs the
life of the tie in UV exposures. • Inside serrations allow for strong grip on
cables and wire bundles. • Head design provides high tensile strength with
very low insertion force. • Bent tail ensures a quick and simple installation.
Quantity Per
bag
Page 2
Product Description
Used in the solar industry and other applications, HellermannTyton offers cable
ties made of UV stabilized PA66UV material. This material provides additional
protection against UV radiation for long-term outdoor use and is available in
various styles, tensile strengths, and bundle diameters. T-Series Cable Ties
feature inside serrations to provide a positive hold on wire and cable bundles.
The head design guarantees high tensile strength and a low insertion force.
The bent tail design allows quick and simple installations by hand. For
high-volume applications, tensioning tools are available to ensure consistent
and safe installation.
Short Description
Heavy Duty Cable Tie, 15.2" Long, UL Rated, 120lb Tensile Strength, PA66UV,
Black, 100/pkg
Global Part Name
T120R-PA66UV-BK
Minimum Tensile Strength (Imperial)
120.0
Minimum Tensile Strength (Metric)
535.0
Length L (Imperial)
15.2
Length L (Metric)
387.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.30
Width W (Metric)
7.6
Bundle Diameter Min (Imperial)
0.20
Page 3
Bundle Diameter Min (Metric)
5.0
Bundle Diameter Max (Imperial)
4.1
Bundle Diameter Max (Metric)
104.1
Thickness T (Imperial)
0.07
Thickness T (Metric)
1.8
Material
Polyamide 6.6 UV-resistant (PA66UV)
Material Shortcut
PA66UV
US MIL SPEC
SAE-AS33671
MS3367-3-0
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
BACS38K CAGE Code 53421 UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Page 4
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
5.14
