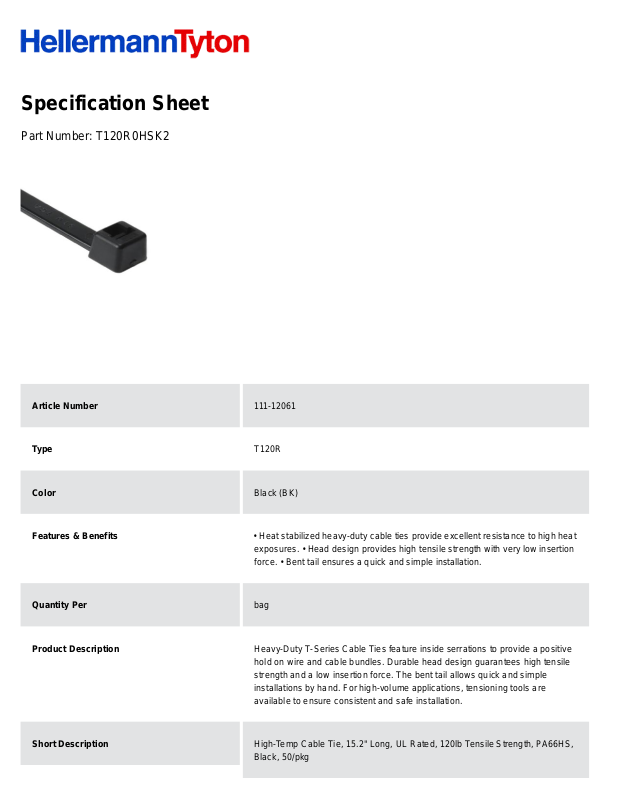

Page 1
Specification Sheet
Part Number:
T120R0HSK2
Article Number
111-12061
Type
T120R
Color
Black (BK)
Features & Benefits
• Heat stabilized heavy-duty cable ties provide excellent resistance to high heat
exposures. • Head design provides high tensile strength with very low insertion
force. • Bent tail ensures a quick and simple installation.
Quantity Per
bag
Product Description
Heavy-Duty T-Series Cable Ties feature inside serrations to provide a positive
hold on wire and cable bundles. Durable head design guarantees high tensile
strength and a low insertion force. The bent tail allows quick and simple
installations by hand. For high-volume applications, tensioning tools are
available to ensure consistent and safe installation.
Short Description
High-Temp Cable Tie, 15.2" Long, UL Rated, 120lb Tensile Strength, PA66HS,
Black, 50/pkg
Page 2
Global Part Name
T120R-PA66HS-BK
Minimum Tensile Strength (Imperial)
120.0
Minimum Tensile Strength (Metric)
535.0
Length L (Imperial)
15.2
Length L (Metric)
387.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.30
Width W (Metric)
7.6
Bundle Diameter Min (Imperial)
0.20
Bundle Diameter Min (Metric)
5.0
Bundle Diameter Max (Imperial)
4.1
Bundle Diameter Max (Metric)
104.1
Page 3
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
US MIL SPEC
MS3367-1-10
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
ROHS Complaint
Yes
Certification/Specification WEB
VG U48/04103 UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Listed (US and Canada)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
50
Package Quantity (Metric)
50
Customs Number
3926909988
© 2019 HellermannTyton. All Rights Reserved.
