Page 1

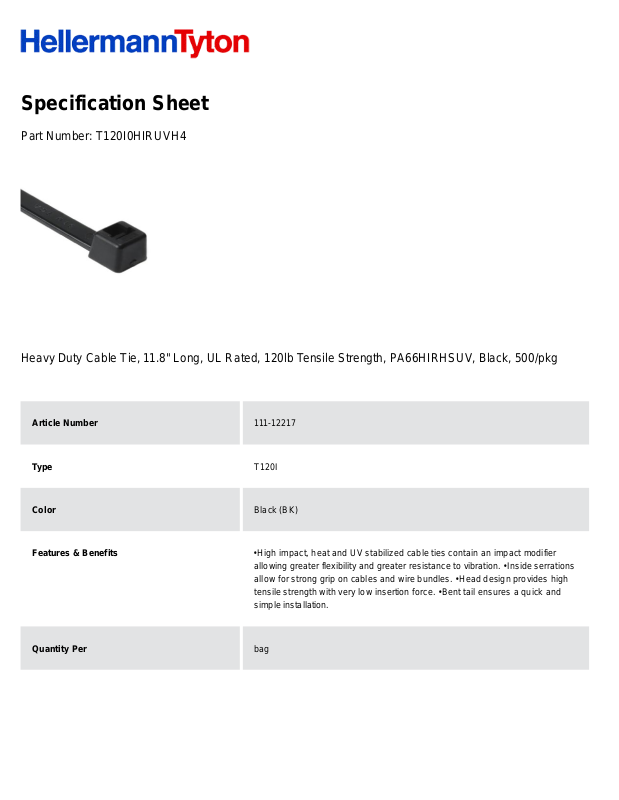

Specification Sheet
Part Number:
T120I0HIRUVH4
Heavy Duty Cable Tie, 11.8" Long, UL Rated, 120lb Tensile Strength, PA66HIRHSUV, Black, 500/pkg
Article Number
111-12217
Type
T120I
Color
Black (BK)
Features & Benefits
•
High impact, heat and UV stabilized cable ties contain an impact modifier
allowing greater flexibility and greater resistance to vibration. •
Inside serrations
allow for strong grip on cables and wire bundles. •
Head design provides high
tensile strength with very low insertion force. •
Bent tail ensures a quick and
simple installation.
Quantity Per
bag
Page 2
Product Description
Manufactured from a specially formulated impact-resistant, heat and UV
stabilized PA66 material, these cable ties offer increased flexibility, impact
strength, heat and UV resistance to endure moisture fluctuations. T-Series
Cable Ties feature inside serrations to provide a positive hold on wire and
cable bundles. The head design guarantees high tensile strength and a low
insertion force. The bent tail design allows quick and simple installations by
hand. For high-volume applications, tensioning tools are available to ensure
consistent and safe installation.
Short Description
Heavy Duty Cable Tie, 11.8" Long, UL Rated, 120lb Tensile Strength,
PA66HIRHSUV, Black, 500/pkg
Global Part Name
T120I-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
120.0
Minimum Tensile Strength (Metric)
535.0
Length L (Imperial)
11.8
Length L (Metric)
300.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.30
Width W (Metric)
7.6
Bundle Diameter Min (Imperial)
0.20
Page 3
Bundle Diameter Min (Metric)
5.0
Bundle Diameter Max (Imperial)
3.2
Bundle Diameter Max (Metric)
81.3
Thickness T (Metric)
1.6
Cable Tie Width Max (Imperial)
0.3
Cable Tie Width Max (Metric)
7.61
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
Flammability
UL 94 HB
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
ROHS Complaint
Yes
Certification/Specification WEB
UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Page 4
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
