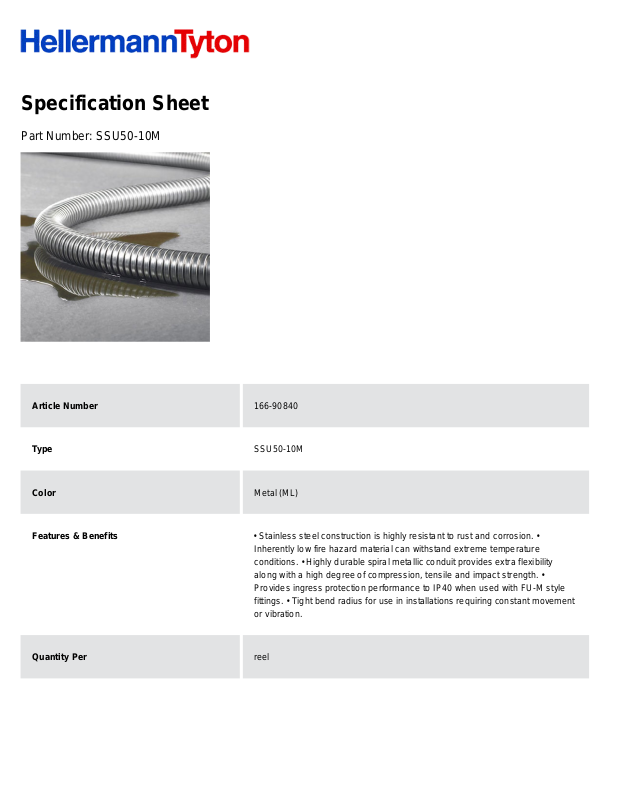

Specification Sheet
Part Number:
SSU50-10M
Article Number
166-90840
Type
SSU50-10M
Color
Metal (ML)
Features & Benefits
• Stainless steel construction is highly resistant to rust and corrosion. •
Inherently low fire hazard material can withstand extreme temperature
conditions. • Highly durable spiral metallic conduit provides extra flexibility
along with a high degree of compression, tensile and impact strength. •
Provides ingress protection performance to IP40 when used with FU-M style
fittings. • Tight bend radius for use in installations requiring constant movement
or vibration.
Quantity Per
reel
Page 2
Product Description
A highly flexible stainless steel conduit used in constrained spaces and highly
corrosive environments. SSU conduit is inherently low fire hazard, provides
high mechanical strength and is anti-static. Designed for use where an extra
flexible stainless steel conduit is needed in machinery, instrumentation and
security within harsh environments or extreme temperature conditions. Use
with FU-M series metallic fittings for IP40 ingress ratings or FSU-E conduit
endcap inserts for a smooth entry point into conduit.
Short Description
HelaGuard Metallic Conduit, Extra Flexible, 1.5" (50mm) Dia, SS316, Metal,
32.8 ft/reel
Global Part Name
SSU50-10M-SS316-ML
Length L (Imperial)
32.8
Length L (Metric)
10.0
Inner Diameter D (Imperial)
1.89
Inner Diameter D (Metric)
48.0
Outside Diameter OD(Imperial)
2.08
Outside Diameter OD(metric)
52.8
Nominal Diameter (Imperial)
1-1/2
Nominal Diameter (Metric)
50
Material
Stainless Steel (SS316)
Material Shortcut
SS316
Page 3
Flammability
Self-Extinguishing
Operating Temperature (Metric)
-148°F to +752°F (-100°C to +400°C)
Package Quantity(Imperial)
32.8
Package Quantity (Metric)
10.0
