Page 1

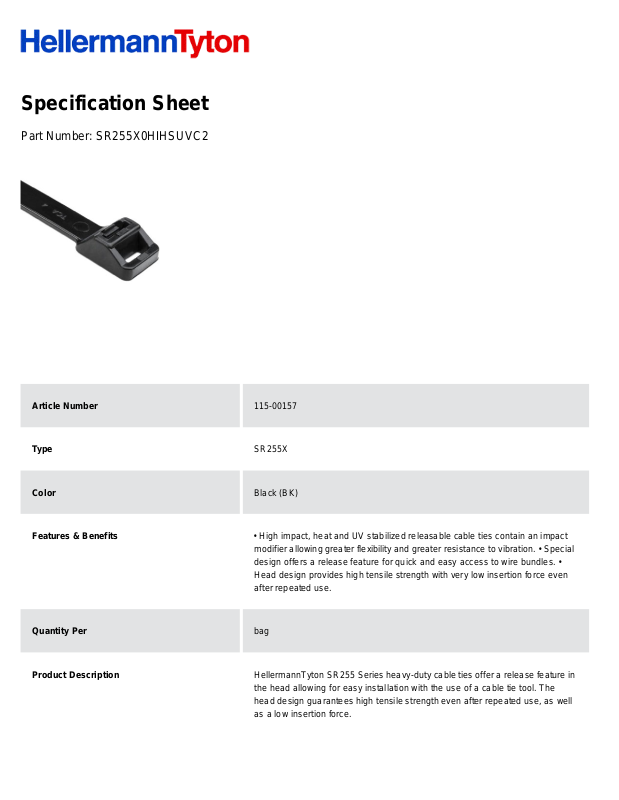

Specification Sheet
Part Number:
SR255X0HIHSUVC2
Article Number
115-00157
Type
SR255X
Color
Black (BK)
Features & Benefits
• High impact, heat and UV stabilized releasable cable ties contain an impact
modifier allowing greater flexibility and greater resistance to vibration. • Special
design offers a release feature for quick and easy access to wire bundles. •
Head design provides high tensile strength with very low insertion force even
after repeated use.
Quantity Per
bag
Product Description
HellermannTyton SR255 Series heavy-duty cable ties offer a release feature in
the head allowing for easy installation with the use of a cable tie tool. The
head design guarantees high tensile strength even after repeated use, as well
as a low insertion force.
Page 2
Short Description
Releasable Cable Tie, 14.6" Long, 250lb Tensile Strength, PA66HIRHSUV,
Black, 100/pkg
Global Part Name
SR255X-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
250.0
Minimum Tensile Strength (Metric)
1115.0
Length L (Imperial)
14.6
Length L (Metric)
370.0
Identification Plate Position
none
Releasable Closure
Yes
Width W (Imperial)
0.5
Width W (Metric)
12.6
Bundle Diameter Min (Imperial)
0.51
Bundle Diameter Min (Metric)
13.0
Bundle Diameter Max (Imperial)
3.9
Bundle Diameter Max (Metric)
100.0
Cable Tie Width Max (Imperial)
0.49
Page 3
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
Flammability
UL 94 HB
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
