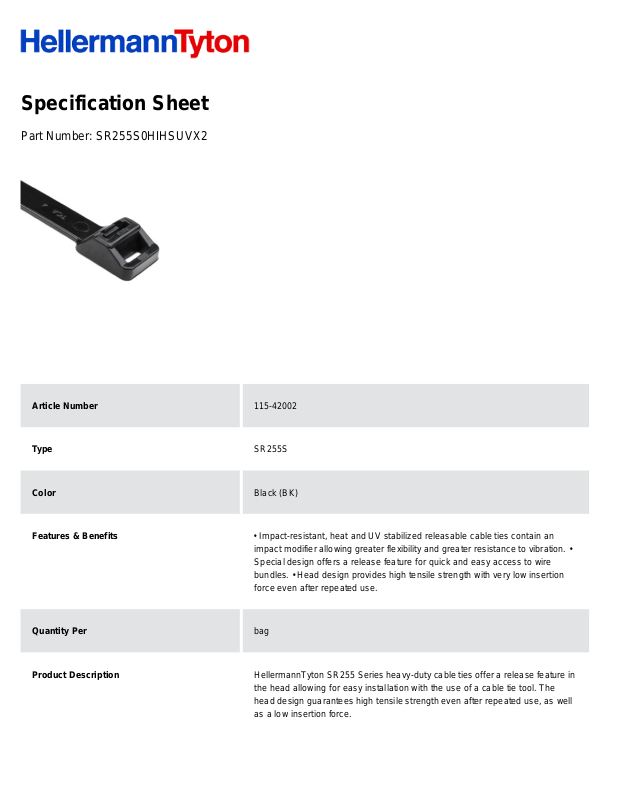

Specification Sheet
Part Number:
SR255S0HIHSUVX2
Article Number
115-42002
Type
SR255S
Color
Black (BK)
Features & Benefits
• Impact-resistant, heat and UV stabilized releasable cable ties contain an
impact modifier allowing greater flexibility and greater resistance to vibration. •
Special design offers a release feature for quick and easy access to wire
bundles. • Head design provides high tensile strength with very low insertion
force even after repeated use.
Quantity Per
bag
Product Description
HellermannTyton SR255 Series heavy-duty cable ties offer a release feature in
the head allowing for easy installation with the use of a cable tie tool. The
head design guarantees high tensile strength even after repeated use, as well
as a low insertion force.
Short Description
Releasable Cable Tie, 8.9" Long, 250lb Tensile Strength, PA66HIRHSUV,
Black, 25/pkg
Global Part Name
SR255S-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
250.0
Minimum Tensile Strength (Metric)
1115.0
Length L (Imperial)
8.9
Length L (Metric)
225.0
Identification Plate Position
none
Releasable Closure
Yes
Width W (Imperial)
0.5
Width W (Metric)
12.6
Bundle Diameter Min (Imperial)
0.51
Bundle Diameter Min (Metric)
13.0
Bundle Diameter Max (Imperial)
2.0
Bundle Diameter Max (Metric)
50.0
Cable Tie Width Max (Imperial)
0.49
Cable Tie Width Max (Metric)
12.5
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
Flammability
UL 94 HB
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
25
Package Quantity (Metric)
25
Customs Number
3926909988
