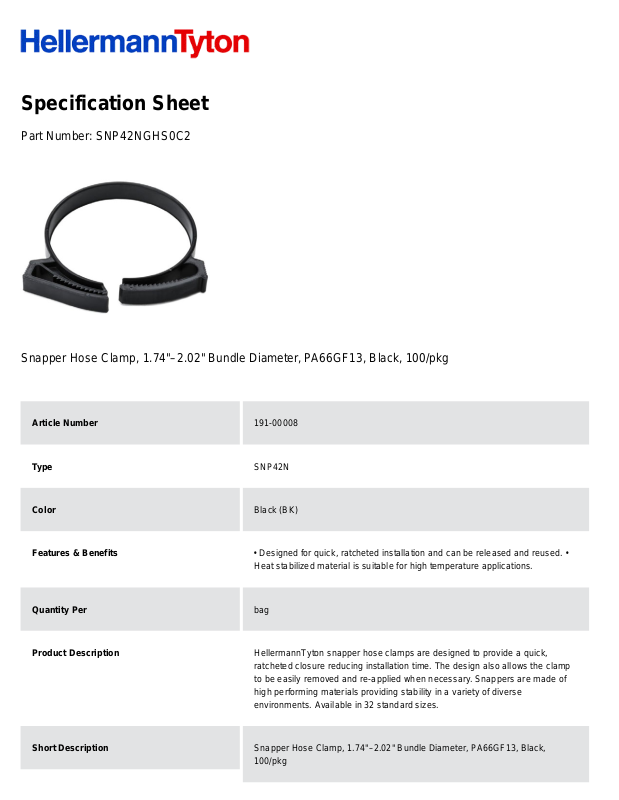

Specification Sheet
Part Number:
SNP42NGHS0C2
Snapper Hose Clamp, 1.74"–2.02" Bundle Diameter, PA66GF13, Black, 100/pkg
Article Number
191-00008
Type
SNP42N
Color
Black (BK)
Features & Benefits
• Designed for quick, ratcheted installation and can be released and reused. •
Heat stabilized material is suitable for high temperature applications.
Quantity Per
bag
Product Description
HellermannTyton snapper hose clamps are designed to provide a quick,
ratcheted closure reducing installation time. The design also allows the clamp
to be easily removed and re-applied when necessary. Snappers are made of
high performing materials providing stability in a variety of diverse
environments. Available in 32 standard sizes.
Short Description
Snapper Hose Clamp, 1.74"–2.02" Bundle Diameter, PA66GF13, Black,
100/pkg
Global Part Name
SNP42N-PA66GF13-BK
Fixation Method
Plug-in mounting
Variant
Closed
Bundle Diameter Min (Imperial)
1.75
Bundle Diameter Min (Metric)
45.5
Bundle Diameter Max (Imperial)
2.06
Bundle Diameter Max (Metric)
52
Wall Thickness WT (Imperial)
.069
Wall Thickness WT (Metric)
1.717
Material
Polyamide 6.6 glass filled impact modified heat stabilized (PA66GF13%)
Material Shortcut
PA66GF13
Flammability
UL 94 HB
UV Resistant (Yes/No)
No
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
ROHS Complaint
Yes
