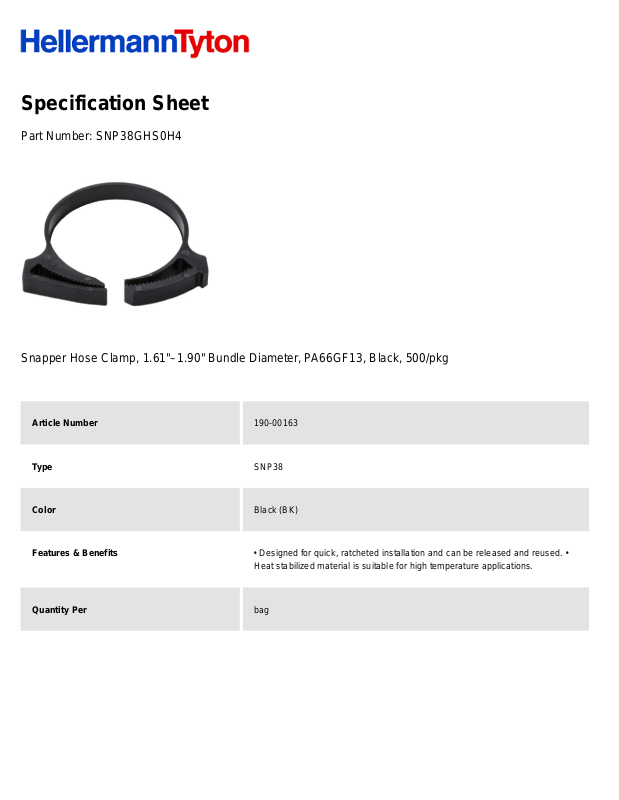

Specification Sheet
Part Number:
SNP38GHS0H4
Snapper Hose Clamp, 1.61"–1.90" Bundle Diameter, PA66GF13, Black, 500/pkg
Article Number
190-00163
Type
SNP38
Color
Black (BK)
Features & Benefits
• Designed for quick, ratcheted installation and can be released and reused. •
Heat stabilized material is suitable for high temperature applications.
Quantity Per
bag
Product Description
Snapper Hose Clamps are lightweight and corrosion-resistant. Manufactured
from high-performance thermoplastic materials selected to work well in a
variety of diverse environments. A quick ratchet closure provides for reduced
assembly line time and allows for application after connection of the hose.
Release is achieved by initiating opposed lateral movement of the ratchet
ends. Heat stabilized materials are available for high-temperature, motor, and
under-hood applications. Snappers are also stable in a wide variety of
chemicals including salts, bases, alcohols, ethers, detergents, gasoline,
lubricating oils, and greases. The Snapper is available in 32 standard sizes
ranging from 1/4" to 4-1/2" ID. Snappers are manufactured in white polyacetal
and black polyamide 6.6 glass filled impact modified heat stabilized material.
Custom designed and different colored or shaped Snappers are available
based upon applications and volume requirements.
Short Description
Snapper Hose Clamp, 1.61"–1.90" Bundle Diameter, PA66GF13, Black,
500/pkg
Global Part Name
SNP38-PA66GF13-BK
Fixation Method
Plug-in mounting
Variant
Closed
Wall Thickness WT (Imperial)
.069
Wall Thickness WT (Metric)
1.717
Material
Polyamide 6.6 glass filled impact modified heat stabilized (PA66GF13%)
Material Shortcut
PA66GF13
Flammability
UL 94 HB
UV Resistant (Yes/No)
No
