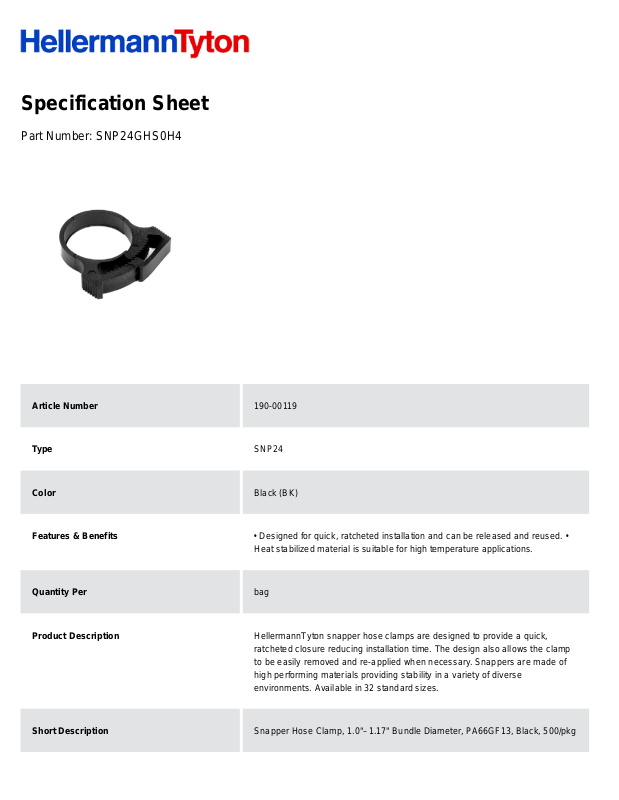

Page 1
Specification Sheet
Part Number:
SNP24GHS0H4
Article Number
190-00119
Type
SNP24
Color
Black (BK)
Features & Benefits
• Designed for quick, ratcheted installation and can be released and reused. •
Heat stabilized material is suitable for high temperature applications.
Quantity Per
bag
Product Description
HellermannTyton snapper hose clamps are designed to provide a quick,
ratcheted closure reducing installation time. The design also allows the clamp
to be easily removed and re-applied when necessary. Snappers are made of
high performing materials providing stability in a variety of diverse
environments. Available in 32 standard sizes.
Short Description
Snapper Hose Clamp, 1.0"–1.17" Bundle Diameter, PA66GF13, Black, 500/pkg
Page 2
Global Part Name
SNP24-PA66GF13-BK
Fixation Method
Plug-in mounting
Variant
Closed
Bundle Diameter Min (Metric)
25.0
Bundle Diameter Max (Metric)
28.8
Wall Thickness WT (Imperial)
0.068
Wall Thickness WT (Metric)
1.7
Material
Polyamide 6.6 glass filled impact modified heat stabilized (PA66GF13%)
Material Shortcut
PA66GF13
Flammability
UL 94 HB
UV Resistant (Yes/No)
No
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Page 3
Package Quantity (Metric)
500
Customs Number
3926909988
