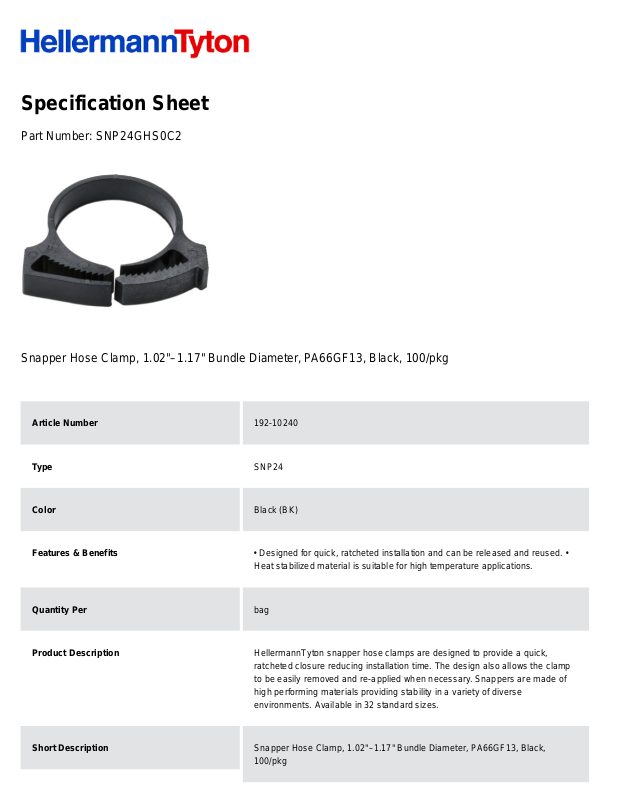

Specification Sheet
Part Number:
SNP24GHS0C2
Snapper Hose Clamp, 1.02"–1.17" Bundle Diameter, PA66GF13, Black, 100/pkg
Article Number
192-10240
Type
SNP24
Color
Black (BK)
Features & Benefits
• Designed for quick, ratcheted installation and can be released and reused. •
Heat stabilized material is suitable for high temperature applications.
Quantity Per
bag
Product Description
HellermannTyton snapper hose clamps are designed to provide a quick,
ratcheted closure reducing installation time. The design also allows the clamp
to be easily removed and re-applied when necessary. Snappers are made of
high performing materials providing stability in a variety of diverse
environments. Available in 32 standard sizes.
Short Description
Snapper Hose Clamp, 1.02"–1.17" Bundle Diameter, PA66GF13, Black,
100/pkg
Page 2
Global Part Name
SNP24-PA66GF13-BK
Fixation Method
Plug-in mounting
Variant
Closed
Bundle Diameter Min (Imperial)
1.0
Bundle Diameter Min (Metric)
25.8
Bundle Diameter Max (Imperial)
1.15
Bundle Diameter Max (Metric)
29.2
Nominal Diameter (Imperial)
1-1/16
Nominal Diameter (Metric)
27
Wall Thickness WT (Imperial)
0.1
Wall Thickness WT (Metric)
1.7
Material
Polyamide 6.6 glass filled impact modified heat stabilized (PA66GF13%)
Material Shortcut
PA66GF13
Flammability
UL 94 HB
UV Resistant (Yes/No)
No
Page 3
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
0.36
