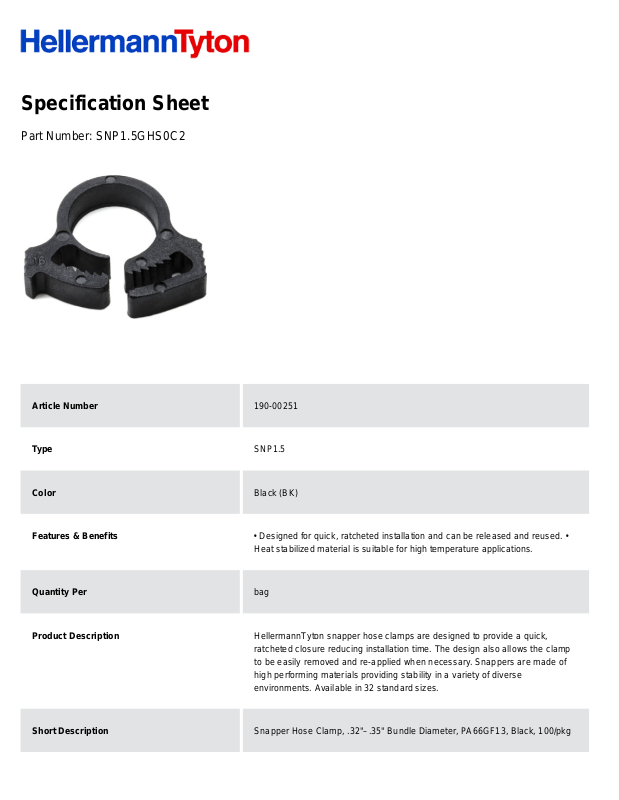

Specification Sheet
Part Number:
SNP1.5GHS0C2
Article Number
190-00251
Type
SNP1.5
Color
Black (BK)
Features & Benefits
• Designed for quick, ratcheted installation and can be released and reused. •
Heat stabilized material is suitable for high temperature applications.
Quantity Per
bag
Product Description
HellermannTyton snapper hose clamps are designed to provide a quick,
ratcheted closure reducing installation time. The design also allows the clamp
to be easily removed and re-applied when necessary. Snappers are made of
high performing materials providing stability in a variety of diverse
environments. Available in 32 standard sizes.
Short Description
Snapper Hose Clamp, .32"–.35" Bundle Diameter, PA66GF13, Black, 100/pkg
Global Part Name
SNP1.5-PA66GF13-BK
Fixation Method
Plug-in mounting
Variant
Closed
Bundle Diameter Min (Imperial)
0.32
Bundle Diameter Min (Metric)
8.0
Bundle Diameter Max (Imperial)
0.36
Bundle Diameter Max (Metric)
9
Wall Thickness WT (Imperial)
.055
Wall Thickness WT (Metric)
1.414
Material
Polyamide 6.6 glass filled impact modified heat stabilized (PA66GF13%)
Material Shortcut
PA66GF13
Flammability
UL 94 HB
UV Resistant (Yes/No)
No
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
ROHS Complaint
Yes
