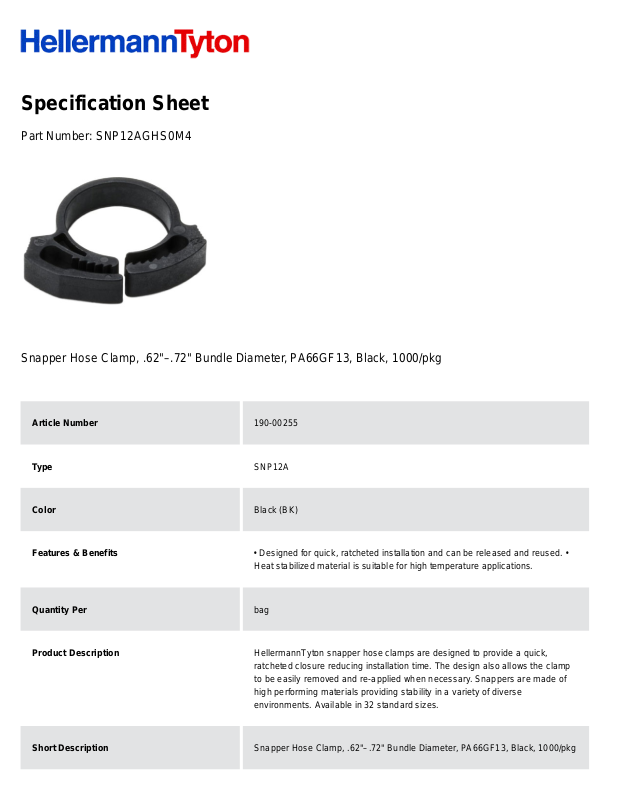

Specification Sheet
Part Number:
SNP12AGHS0M4
Snapper Hose Clamp, .62"–.72" Bundle Diameter, PA66GF13, Black, 1000/pkg
Article Number
190-00255
Type
SNP12A
Color
Black (BK)
Features & Benefits
• Designed for quick, ratcheted installation and can be released and reused. •
Heat stabilized material is suitable for high temperature applications.
Quantity Per
bag
Product Description
HellermannTyton snapper hose clamps are designed to provide a quick,
ratcheted closure reducing installation time. The design also allows the clamp
to be easily removed and re-applied when necessary. Snappers are made of
high performing materials providing stability in a variety of diverse
environments. Available in 32 standard sizes.
Short Description
Snapper Hose Clamp, .62"–.72" Bundle Diameter, PA66GF13, Black, 1000/pkg
Global Part Name
SNP12A-PA66GF13-BK
Fixation Method
Plug-in mounting
Variant
Closed
Wall Thickness WT (Imperial)
.070
Wall Thickness WT (Metric)
1.78
Material
Polyamide 6.6 glass filled impact modified heat stabilized (PA66GF13%)
Material Shortcut
PA66GF13
Flammability
UL 94 HB
UV Resistant (Yes/No)
No
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Customs Number
3926909988
