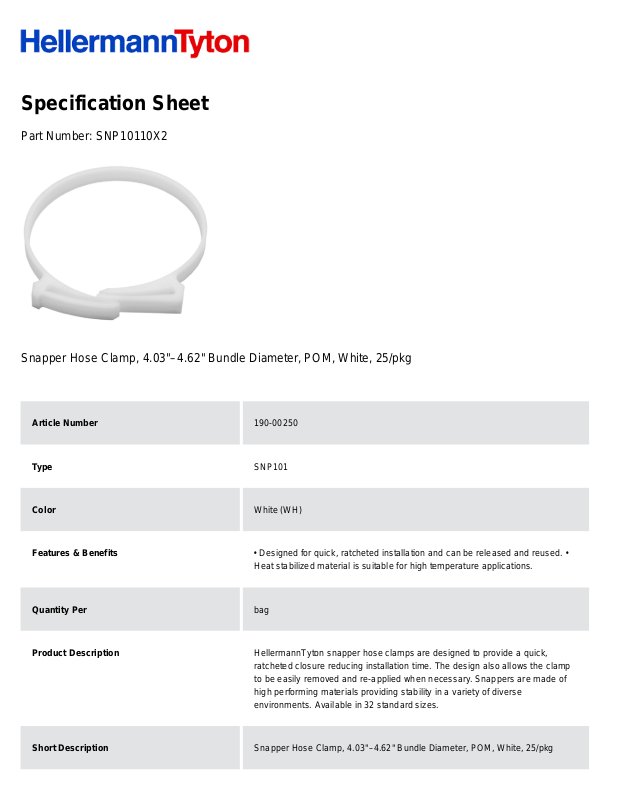

Specification Sheet
Part Number:
SNP10110X2
Snapper Hose Clamp, 4.03"–4.62" Bundle Diameter, POM, White, 25/pkg
Article Number
190-00250
Type
SNP101
Color
White (WH)
Features & Benefits
• Designed for quick, ratcheted installation and can be released and reused. •
Heat stabilized material is suitable for high temperature applications.
Quantity Per
bag
Product Description
HellermannTyton snapper hose clamps are designed to provide a quick,
ratcheted closure reducing installation time. The design also allows the clamp
to be easily removed and re-applied when necessary. Snappers are made of
high performing materials providing stability in a variety of diverse
environments. Available in 32 standard sizes.
Short Description
Snapper Hose Clamp, 4.03"–4.62" Bundle Diameter, POM, White, 25/pkg
Global Part Name
SNP101-POM-WH
Fixation Method
Plug-in mounting
Variant
Closed
Wall Thickness WT (Imperial)
.098
Wall Thickness WT (Metric)
2.5
Material
Polyacetal (POM)
Material Shortcut
POM
Flammability
UL 94 HB
UV Resistant (Yes/No)
No
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
25
Package Quantity (Metric)
25
