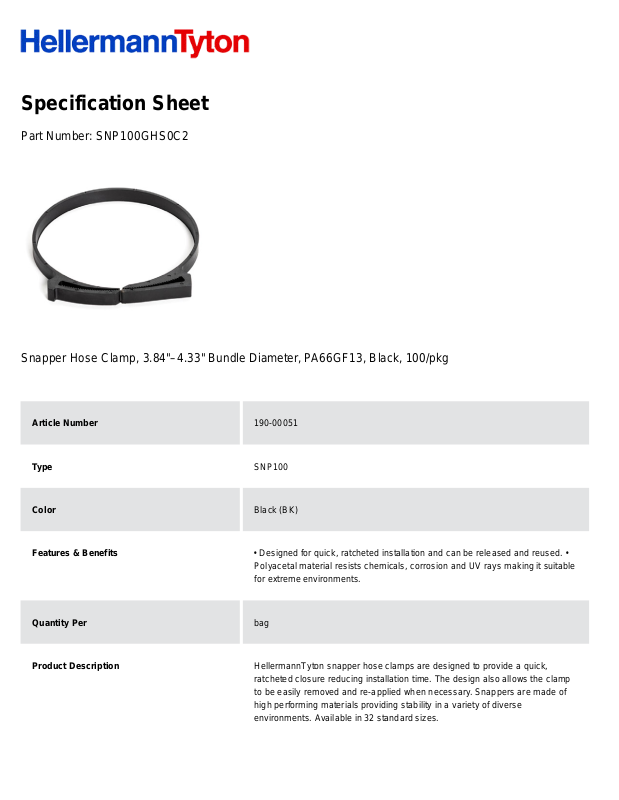

Specification Sheet
Part Number:
SNP100GHS0C2
Snapper Hose Clamp, 3.84"–4.33" Bundle Diameter, PA66GF13, Black, 100/pkg
Article Number
190-00051
Type
SNP100
Color
Black (BK)
Features & Benefits
• Designed for quick, ratcheted installation and can be released and reused. •
Polyacetal material resists chemicals, corrosion and UV rays making it suitable
for extreme environments.
Quantity Per
bag
Product Description
HellermannTyton snapper hose clamps are designed to provide a quick,
ratcheted closure reducing installation time. The design also allows the clamp
to be easily removed and re-applied when necessary. Snappers are made of
high performing materials providing stability in a variety of diverse
environments. Available in 32 standard sizes.
Page 2
Short Description
Snapper Hose Clamp, 3.84"–4.33" Bundle Diameter, PA66GF13, Black,
100/pkg
Global Part Name
SNP100-PA66GF13-BK
Fixation Method
Plug-in mounting
Variant
Closed
Wall Thickness WT (Imperial)
0.1
Wall Thickness WT (Metric)
2.5
Material
Polyamide 6.6 glass filled impact modified heat stabilized (PA66GF13%)
Material Shortcut
PA66GF13
Flammability
UL 94 HB
UV Resistant (Yes/No)
No
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Page 3
Customs Number
3926909988
