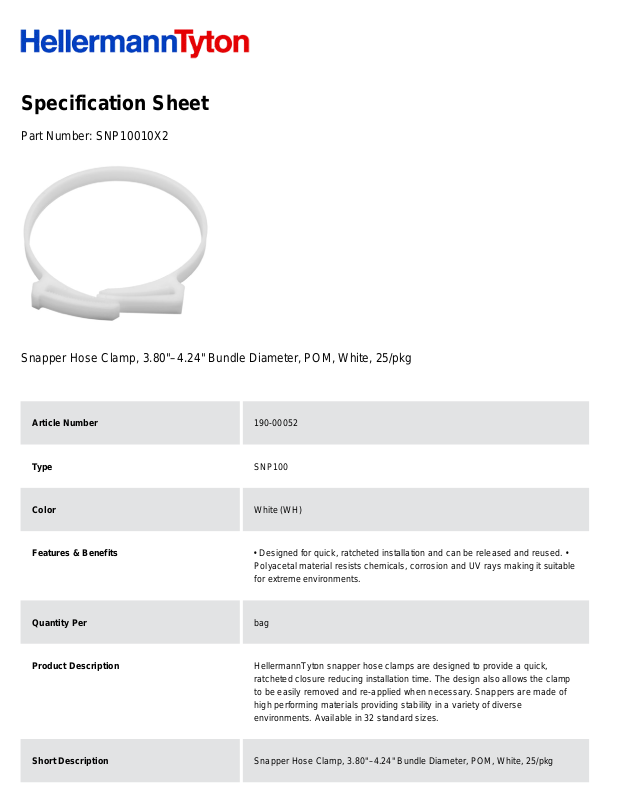

Specification Sheet
Part Number:
SNP10010X2
Snapper Hose Clamp, 3.80"–4.24" Bundle Diameter, POM, White, 25/pkg
Article Number
190-00052
Type
SNP100
Color
White (WH)
Features & Benefits
• Designed for quick, ratcheted installation and can be released and reused. •
Polyacetal material resists chemicals, corrosion and UV rays making it suitable
for extreme environments.
Quantity Per
bag
Product Description
HellermannTyton snapper hose clamps are designed to provide a quick,
ratcheted closure reducing installation time. The design also allows the clamp
to be easily removed and re-applied when necessary. Snappers are made of
high performing materials providing stability in a variety of diverse
environments. Available in 32 standard sizes.
Short Description
Snapper Hose Clamp, 3.80"–4.24" Bundle Diameter, POM, White, 25/pkg
Global Part Name
SNP100-POM-WH
Fixation Method
Plug-in mounting
Variant
Closed
Bundle Diameter Min (Imperial)
3.88
Bundle Diameter Min (Metric)
98.5
Bundle Diameter Max (Imperial)
4.25
Bundle Diameter Max (Metric)
108
Wall Thickness WT (Imperial)
.098
Wall Thickness WT (Metric)
2.4
Material
Polyacetal (POM)
Material Shortcut
POM
Flammability
UL 94 HB
UV Resistant (Yes/No)
No
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
ROHS Complaint
Yes
