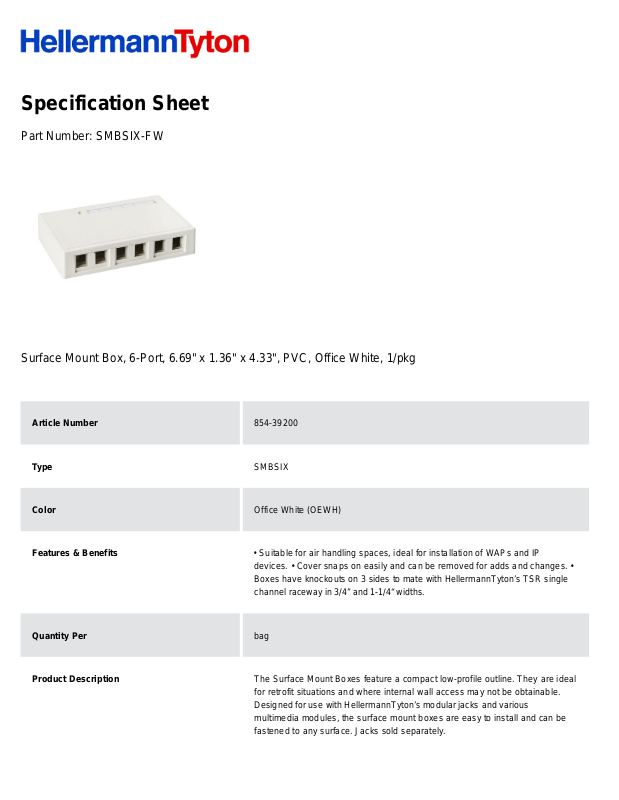

Specification Sheet
Part Number:
SMBSIX-FW
Surface Mount Box, 6-Port, 6.69" x 1.36" x 4.33", PVC, Office White, 1/pkg
Article Number
854-39200
Type
SMBSIX
Color
Office White (OEWH)
Features & Benefits
• Suitable for air handling spaces, ideal for installation of WAPs and IP
devices. • Cover snaps on easily and can be removed for adds and changes. •
Boxes have knockouts on 3 sides to mate with HellermannTyton’s TSR single
channel raceway in 3/4” and 1-1/4“ widths.
Quantity Per
bag
Product Description
The Surface Mount Boxes feature a compact low-profile outline. They are ideal
for retrofit situations and where internal wall access may not be obtainable.
Designed for use with HellermannTyton’s modular jacks and various
multimedia modules, the surface mount boxes are easy to install and can be
fastened to any surface. Jacks sold separately.
Short Description
Surface Mount Box, 6-Port, 6.69" x 1.36" x 4.33", PVC, Office White, 1/pkg
Global Part Name
SMBSIX
Technical Description
Surface Mount Box, 6-Port, 6.69" x 1.36" x 4.33", PVC, Office White
Port Count
4
Width W (Imperial)
6.69
Width W (Metric)
170.0
Height H (Imperial)
1.26
Height H (Metric)
32.0
Depth D (imperial)
4.33
Depth D (metric)
110.0
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
