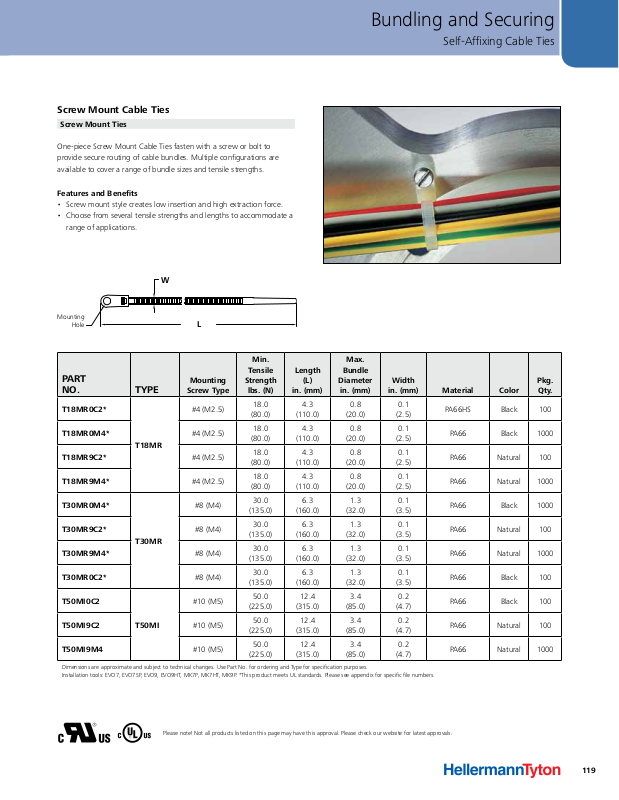

Screw Mount Cable Ties
W
Mounting
Screw Mount Ties
One-piece Screw Mount Cable Ties fasten with a screw or bolt to
provide secure routing of cable bundles. Multiple configurations are
available to cover a range of bundle sizes and tensile strengths.
Features and Benefits
• Screw mount style creates low insertion and high extraction force.
• Choose from several tensile strengths and lengths to accommodate a
range of applications.
Bundling and Securing
Self-Axing Cable Ties
Hole
PART
NO. TYPE
T18MR0C2*
T18MR0M4* #4 (M2.5)
T18MR
T18MR9C2* #4 (M2.5)
T18MR9M4* #4 (M2.5)
T30MR0M4*
T30MR9C2* #8 (M4)
T30MR
T30MR9M4* #8 (M4)
T30MR0C2* #8 (M4)
T50MI0C2
T50MI9C2 #10 (M5)
T50MI9M4 #10 (M5)
Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes.
Installation tools: EVO7, EVO7SP, EVO9, EVO9HT, MK7P, MK7HT, MK9P. *This product meets UL standards. Please see appendix for specific file numbers.
T50MI
L
Mounting
Screw Type
#4 (M2.5)
#8 (M4)
#10 (M5)
Min.
Tensile
Strength
lbs. (N)
18.0
(80.0)
18.0
(80.0)
18.0
(80.0)
18.0
(80.0)
30.0
(135.0)
30.0
(135.0)
30.0
(135.0)
30.0
(135.0)
50.0
(225.0)
50.0
(225.0)
50.0
(225.0)
Length
(L)
in. (mm)
4.3
(110.0)
4.3
(110.0)
4.3
(110.0)
4.3
(110.0)
6.3
(160.0)
6.3
(160.0)
6.3
(160.0)
6.3
(160.0)
12.4
(315.0)
12.4
(315.0)
12.4
(315.0)
Max.
Bundle
Diameter
in. (mm)
0.8
(20.0)
0.8
(20.0)
0.8
(20.0)
0.8
(20.0)
1.3
(32.0)
1.3
(32.0)
1.3
(32.0)
1.3
(32.0)
3.4
(85.0)
3.4
(85.0)
3.4
(85.0)
Width
in. (mm) Material Color
0.1
(2.5)
0.1
(2.5)
0.1
(2.5)
0.1
(2.5)
0.1
(3.5)
0.1
(3.5)
0.1
(3.5)
0.1
(3.5)
0.2
(4.7)
0.2
(4.7)
0.2
(4.7)
Pkg.
Qty.
PA66HS Black 100
PA66 Black 1000
PA66 Natural 100
PA66 Natural 1000
PA66 Black 1000
PA66 Natural 100
PA66 Natural 1000
PA66 Black 100
PA66 Black 100
PA66 Natural 100
PA66 Natural 1000
Please note! Not all products listed on this page may have this approval. Please check our website for latest approvals.
119
