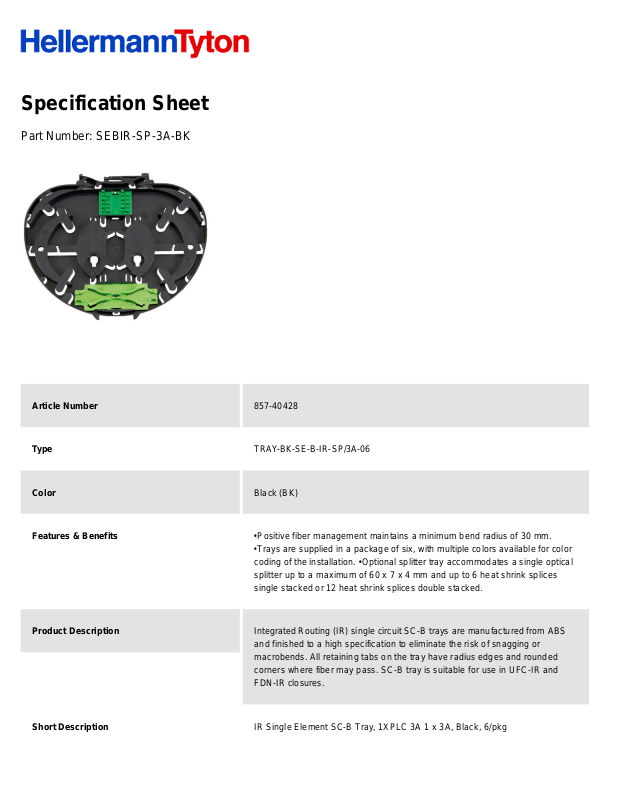

Specification Sheet
Part Number:
SEBIR-SP-3A-BK
Article Number
857-40428
Type
TRAY-BK-SE-B-IR-SP/3A-06
Color
Black (BK)
Features & Benefits
•
Positive fiber management maintains a minimum bend radius of 30 mm.
•
Trays are supplied in a package of six, with multiple colors available for color
coding of the installation. •
Optional splitter tray accommodates a single optical
splitter up to a maximum of 60 x 7 x 4 mm and up to 6 heat shrink splices
single stacked or 12 heat shrink splices double stacked.
Product Description
Integrated Routing (IR) single circuit SC-B trays are manufactured from ABS
and finished to a high specification to eliminate the risk of snagging or
macrobends. All retaining tabs on the tray have radius edges and rounded
corners where fiber may pass. SC-B tray is suitable for use in UFC-IR and
FDN-IR closures.
Short Description
IR Single Element SC-B Tray, 1XPLC 3A 1 x 3A, Black, 6/pkg
Global Part Name
TRAY-BK-SE-B-IR-SP/3A-06
Technical Description
The Integrated Routing (IR) single element splitter tray is manufactured from
black ABS and finished to a high specification to eliminate the risk of snagging
or microbends. All retaining tabs on the tray have radius edges and rounded
corners where fibre may pass. The overall dimensions of the tray are 148 x
125 x 7mm. The IR single element splitter tray is supplied with an optical
splitter/3A splice bridge at the front, which will accommodate 2 x 60 x 7 x 4mm
optical splitters, and a 3A heatshrink (3A) bridge at the rear. The maximum
splice capacity of the tray is 14 fibres based on 14 double stacked heatshrink
(3A) splice protectors up to 60mm long. The IR single element splitter trays is
suitable for use in the UFC-IR, FDN-IR and FML-IR closures.
Width W (Imperial)
5.83
Width W (Metric)
148
Height H (Imperial)
4.92
Height H (Metric)
125
Depth D (imperial)
0.28
Depth D (metric)
7
Material
Acrylonitrile Butadiene Styrene (ABS)
Material Shortcut
ABS
Package Quantity(Imperial)
6
