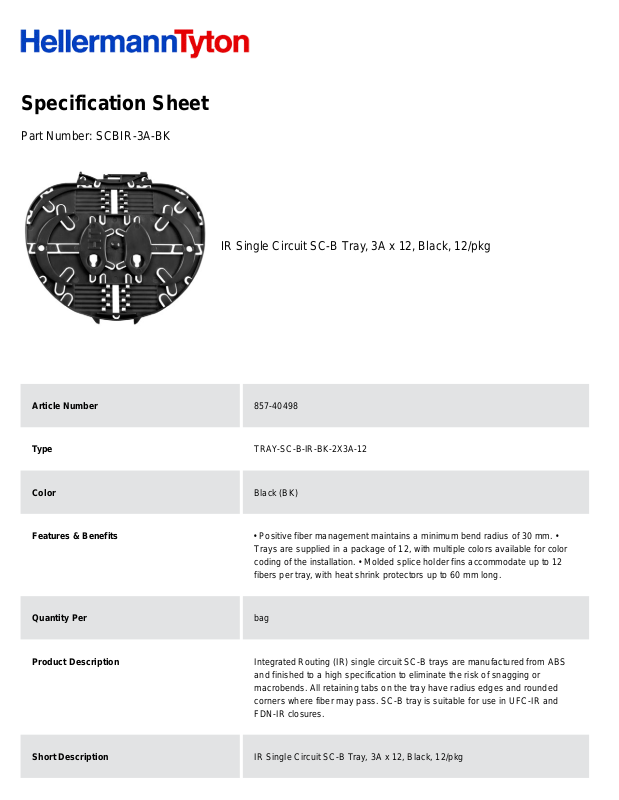

Specification Sheet
Part Number:
SCBIR-3A-BK
IR Single Circuit SC-B Tray, 3A x 12, Black, 12/pkg
Article Number
857-40498
Type
TRAY-SC-B-IR-BK-2X3A-12
Color
Black (BK)
Features & Benefits
• Positive fiber management maintains a minimum bend radius of 30 mm. •
Trays are supplied in a package of 12, with multiple colors available for color
coding of the installation. • Molded splice holder fins accommodate up to 12
fibers per tray, with heat shrink protectors up to 60 mm long.
Quantity Per
bag
Product Description
Integrated Routing (IR) single circuit SC-B trays are manufactured from ABS
and finished to a high specification to eliminate the risk of snagging or
macrobends. All retaining tabs on the tray have radius edges and rounded
corners where fiber may pass. SC-B tray is suitable for use in UFC-IR and
FDN-IR closures.
Short Description
IR Single Circuit SC-B Tray, 3A x 12, Black, 12/pkg
Global Part Name
TRAY-SC-B-IR-BK-2X3A-12
Technical Description
The Integrated Routing (IR) single circuit SC-B trays is manufactured from
ABS and finished to a high specification to eliminate the risk of snagging or
microbends. All retaining tabs on the tray have radius edges and rounded
corners where fibre may pass. The overall dimensions of the tray are 148 x
125 x3.5mm. The tray accepts 3A splice protectors. The IR single circuit SC-B
tray is suitable for use in the UFC-IR, FDN-IR and FML-IR closures as well as
the IR enclosure range.
Width W (Imperial)
5.83
Width W (Metric)
148
Height H (Imperial)
4.92
Height H (Metric)
125
Depth D (imperial)
0.14
Depth D (metric)
3.5
Material
Acrylonitrile Butadiene Styrene (ABS)
Material Shortcut
ABS
Package Quantity(Imperial)
12
Package Quantity (Metric)
12
