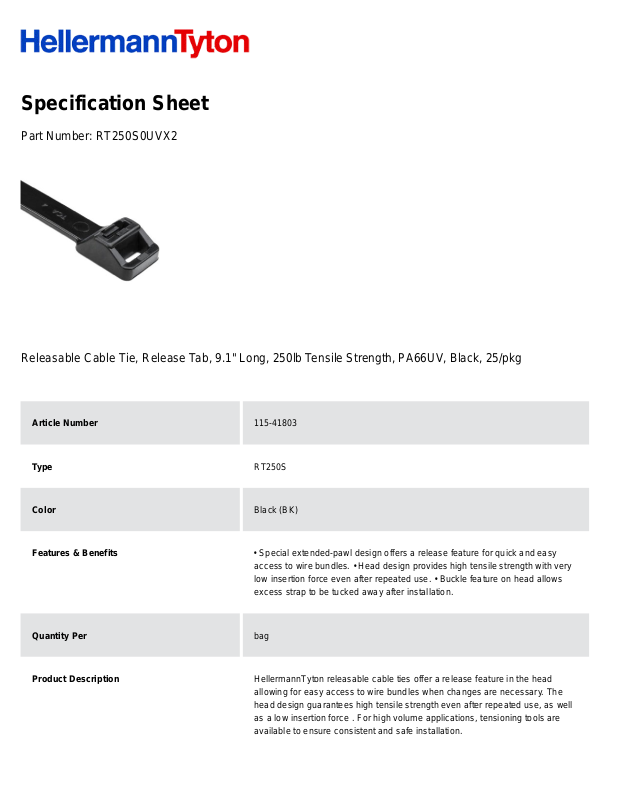

Specification Sheet
Part Number:
RT250S0UVX2
Releasable Cable Tie, Release Tab, 9.1" Long, 250lb Tensile Strength, PA66UV, Black, 25/pkg
Article Number
115-41803
Type
RT250S
Color
Black (BK)
Features & Benefits
• Special extended-pawl design offers a release feature for quick and easy
access to wire bundles. • Head design provides high tensile strength with very
low insertion force even after repeated use. • Buckle feature on head allows
excess strap to be tucked away after installation.
Quantity Per
bag
Product Description
HellermannTyton releasable cable ties offer a release feature in the head
allowing for easy access to wire bundles when changes are necessary. The
head design guarantees high tensile strength even after repeated use, as well
as a low insertion force . For high volume applications, tensioning tools are
available to ensure consistent and safe installation.
Short Description
Releasable Cable Tie, Release Tab, 9.1" Long, 250lb Tensile Strength,
PA66UV, Black, 25/pkg
Global Part Name
RT250S-PA66UV-BK
Minimum Tensile Strength (Imperial)
250.0
Minimum Tensile Strength (Metric)
1115.0
Length L (Imperial)
9.1
Length L (Metric)
230.0
Identification Plate Position
none
Releasable Closure
Yes
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.49
Width W (Metric)
12.5
Bundle Diameter Min (Imperial)
0.47
Bundle Diameter Min (Metric)
12.0
Bundle Diameter Max (Imperial)
2.0
Bundle Diameter Max (Metric)
50.0
