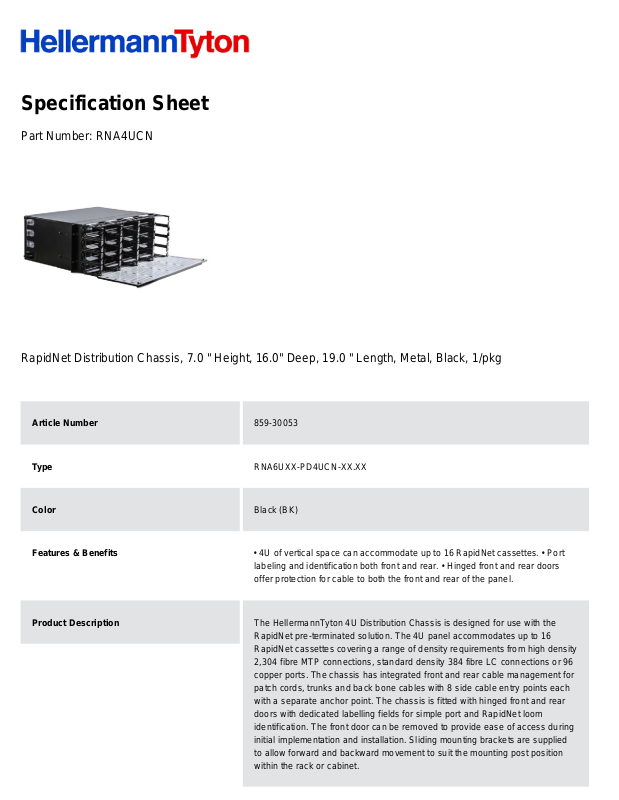

Specification Sheet
Part Number:
RNA4UCN
RapidNet Distribution Chassis, 7.0 " Height, 16.0" Deep, 19.0 " Length, Metal, Black, 1/pkg
Article Number
859-30053
Type
RNA6UXX-PD4UCN-XX.XX
Color
Black (BK)
Features & Benefits
• 4U of vertical space can accommodate up to 16 RapidNet cassettes. • Port
labeling and identification both front and rear. • Hinged front and rear doors
offer protection for cable to both the front and rear of the panel.
Product Description
The HellermannTyton 4U Distribution Chassis is designed for use with the
RapidNet pre-terminated solution. The 4U panel accommodates up to 16
RapidNet cassettes covering a range of density requirements from high density
2,304 fibre MTP connections, standard density 384 fibre LC connections or 96
copper ports. The chassis has integrated front and rear cable management for
patch cords, trunks and back bone cables with 8 side cable entry points each
with a separate anchor point. The chassis is fitted with hinged front and rear
doors with dedicated labelling fields for simple port and RapidNet loom
identification. The front door can be removed to provide ease of access during
initial implementation and installation. Sliding mounting brackets are supplied
to allow forward and backward movement to suit the mounting post position
within the rack or cabinet.
Short Description
RapidNet Distribution Chassis, 7.0 " Height, 16.0" Deep, 19.0 " Length, Metal,
Black, 1/pkg
Global Part Name
RNA6UXX-PD4UCN-XX.XX
Technical Description
Combining the patching area with the front cable management into a single
self-contained 1U of rack space saves valuable room within the racks or
cabinets which in turn allows for higher density patching or for installing more
active equipment within the same cabinet. This can be particularly valuable in
applications such as Storage Area Networks and high density Virtualized
Server Clusters. The Distribution Chassis is designed to help maximize the
return on valuable U space whilst maintaining good access to connectors even
when fully loaded, a real advantage when undertaking Moves, Adds &
Changes (MACs). Use of tabbed LC and MTP patch cords from
HellermannTyton can assist with the ease of undertaking MACs in high density
patching environments.
Variant
Modular Panels
Width W (Imperial)
19.01
Width W (Metric)
483
Height H (Imperial)
7.0
Height H (Metric)
176
Depth D (imperial)
16.0
Depth D (metric)
401
Material
Metal (MET)
Material Shortcut
MET
