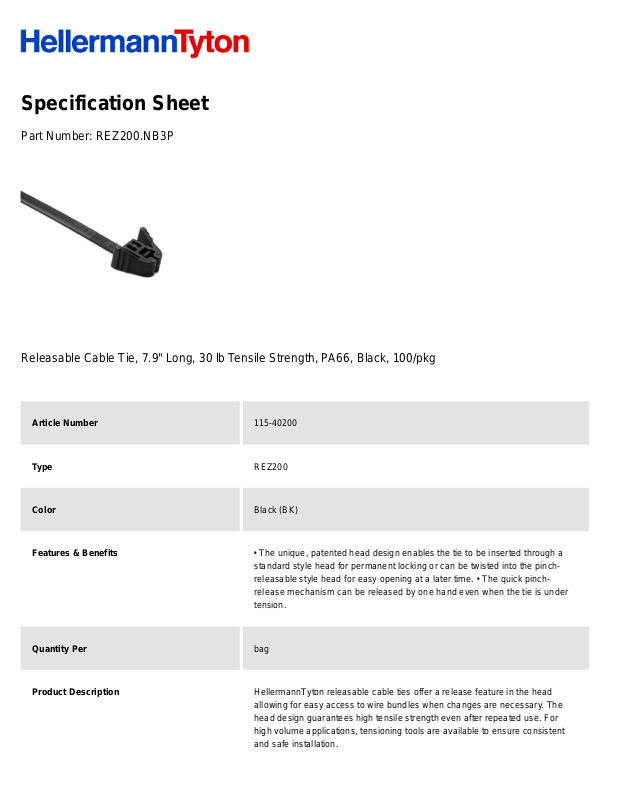

HellermannTyton REZ200.NB3P Specification Sheet

Specification Sheet
Part Number:
REZ200.NB3P
Releasable Cable Tie, 7.9" Long, 30 lb Tensile Strength, PA66, Black, 100/pkg
115-40200
Type
REZ200
Color
Black (BK)
Features & Benefits
• The unique, patented head design enables the tie to be inserted through a
standard style head for permanent locking or can be twisted into the pinch-
releasable style head for easy opening at a later time. • The quick pinch-
release mechanism can be released by one hand even when the tie is under
tension.
Quantity Per
bag
Product Description
HellermannTyton releasable cable ties offer a release feature in the head
allowing for easy access to wire bundles when changes are necessary. The
head design guarantees high tensile strength even after repeated use. For
high volume applications, tensioning tools are available to ensure consistent
and safe installation.
Short Description
Releasable Cable Tie, 7.9" Long, 30 lb Tensile Strength, PA66, Black, 100/pkg
Global Part Name
REZ200-PA66-BK
Minimum Tensile Strength (Imperial)
30.0
Minimum Tensile Strength (Metric)
135
Length L (Imperial)
7.9
Length L (Metric)
200
Identification Plate Position
none
Releasable Closure
Yes
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.19
Width W (Metric)
4.7
Bundle Diameter Min (Imperial)
0.63
Bundle Diameter Min (Metric)
16.0
Bundle Diameter Max (Imperial)
2.0
Bundle Diameter Max (Metric)
50.0
Thickness T (Imperial)
0.055
Thickness T (Metric)
1.4
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +185°F (-40°C to +85°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
1.76
