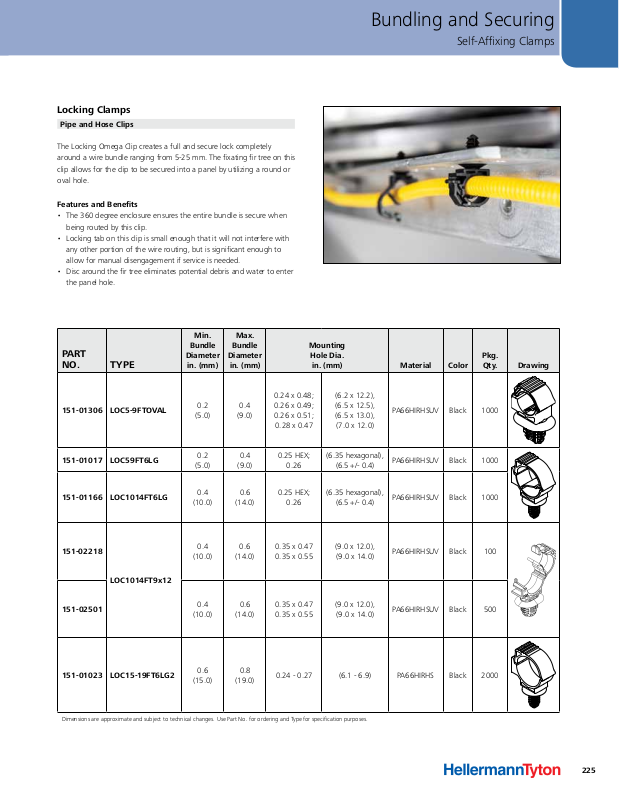

HellermannTyton Pipe and Hose Clips Catalog Page

Locking Clamps

Pipe and Hose Clips

The Locking Omega Clip creates a full and secure lock completely
around a wire bundle ranging from 5-25 mm. The fixating fir tree on this
clip allows for the clip to be secured into a panel by utilizing a round or
oval hole.

Features and Benefits

• The 360 degree enclosure ensures the entire bundle is secure when
being routed by this clip.

• Locking tab on this clip is small enough that it will not interfere with
any other portion of the wire routing, but is significant enough to
allow for manual disengagement if service is needed.

• Disc around the fir tree eliminates potential debris and water to enter
the panel hole.

Bundling and Securing

Self-Axing Clamps

PART
NO. TYPE

151-01306 LOC5-9FTOVAL

151-01017 LOC59FT6LG

151-01166 LOC1014FT6LG

151-02218

LOC1014FT9x12

151-02501

Min.

Bundle

Diameter

in. (mm)

0.2

(5.0)

0.2

(5.0)

0.4

(10.0)

0.4

(10.0)

0.4

(10.0)

Max.

Bundle

Diameter

in. (mm)

0.4

(9.0)

0.4

(9.0)

0.6

(14.0)

0.6

(14.0)

0.6

(14.0)

0.24 x 0.48;

0.26 x 0.49;

0.26 x 0.51;

0.28 x 0.47

0.25 HEX;

0.26

0.25 HEX;

0.26

0.35 x 0.47

0.35 x 0.55

0.35 x 0.47

0.35 x 0.55

Mounting

Hole Dia.

in. (mm) Material Color

(6.2 x 12.2),
(6.5 x 12.5),
(6.5 x 13.0),

(7.0 x 12.0)

(6.35 hexagonal),

(6.5 +/- 0.4)

(6.35 hexagonal),

(6.5 +/- 0.4)

(9.0 x 12.0),

(9.0 x 14.0)

(9.0 x 12.0),

(9.0 x 14.0)

PA66HIRHSUV Black 1000

PA66HIRHSUV Black 1000

PA66HIRHSUV Black 1000

PA66HIRHSUV Black 100

PA66HIRHSUV Black 500

Pkg.

Qty. Drawing

151-01023 LOC15-19FT6LG2

Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes.

0.6

(15.0)

0.8

(19.0)

0.24 - 0.27 (6.1 - 6.9) PA66HIRHS Black 2000

225
