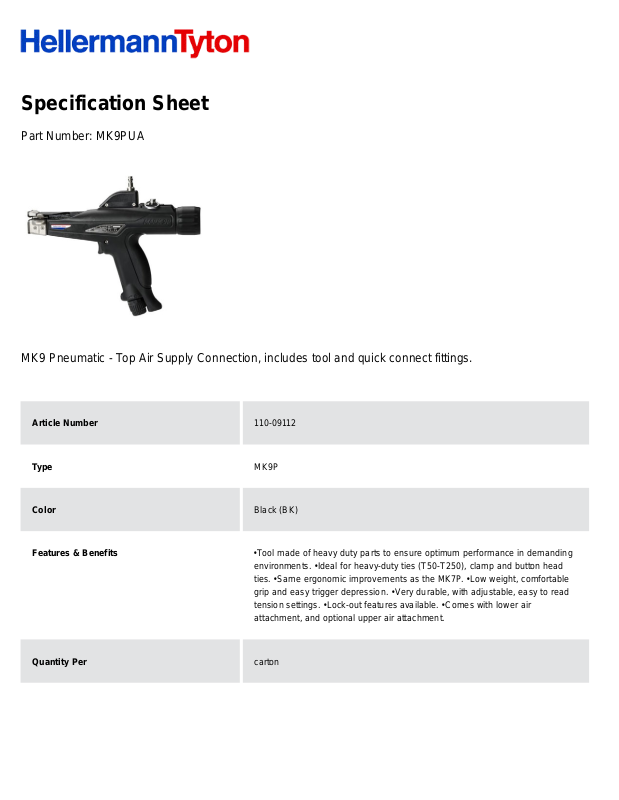

Specification Sheet
Part Number:
MK9PUA
MK9 Pneumatic - Top Air Supply Connection, includes tool and quick connect fittings.
Article Number
110-09112
Type
MK9P
Color
Black (BK)
Features & Benefits
•
Tool made of heavy duty parts to ensure optimum performance in demanding
environments. •
Ideal for heavy-duty ties (T50-T250), clamp and button head
ties. •
Same ergonomic improvements as the MK7P. •
Low weight, comfortable
grip and easy trigger depression. •
Very durable, with adjustable, easy to read
tension settings. •
Lock-out features available. •
Comes with lower air
attachment, and optional upper air attachment.
Quantity Per
carton
Product Description
The Mark 9 Pneumatic (MK9P) is constructed with heavy duty parts to ensure
that it performs optimally in demanding environments. It is ideally designed to
apply heavy-duty ties (T50-T250), clamp and button head ties. Like the MK7P,
HellermannTyton's MK9P incorporates the next level of ergonomic
improvement with its low weight, comfortable grip and easy trigger depression.
Very durable, the pneumatic MK9P features adjustable, easy to read tension
settings. Lock-out features are available. The MK9P is available with lower air
attachment (standard) or can be ordered with an upper air attachment.
Short Description
MK9 Pneumatic - Top Air Supply Connection, includes tool and quick connect
fittings.
Global Part Name
MK9P-BK
Technical Description
Includes Mark 9 Pneumatic tool and quick connect fittings with upper air
coption for top air connection. Includes a hanger for an optional overhead tool
balancer (not included). Ergonomic tool uses pneuamatic power and
accomplishes rapid tension and cuyt-off with one trigger depression.
Cable Ties
T50 thru T250 Series CTT20 thru CTT175 Series El-TY Series Button Head
Series
Cycle Time
2 strokes per second
Tension Setting Tools
Adjustable
Cable Tie Width Max (Imperial)
0.5
Power Supply
Dry or lubricated air
Tension Force
Adjustable
ROHS Complaint
Yes
