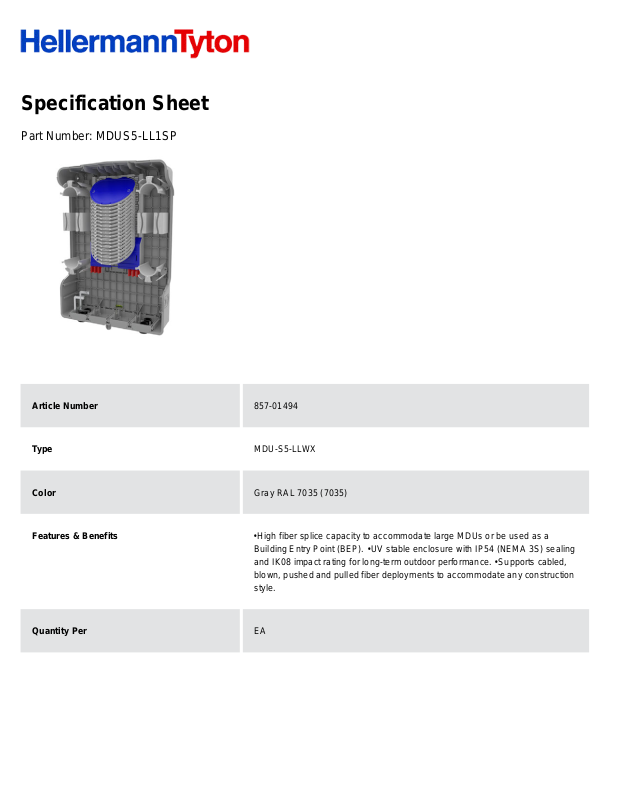

Specification Sheet
Part Number:
MDUS5-LL1SP
Article Number
857-01494
Type
MDU-S5-LLWX
Color
Gray RAL 7035 (7035)
Features & Benefits
•
High fiber splice capacity to accommodate large MDUs or be used as a
Building Entry Point (BEP). •
UV stable enclosure with IP54 (NEMA 3S) sealing
and IK08 impact rating for long-term outdoor performance. •
Supports cabled,
blown, pushed and pulled fiber deployments to accommodate any construction
style.
Quantity Per
EA
Product Description
The large S5 enclosure is designed for wall-mount distribution, configured with
the HellermannTyton IR Management System. The management system
accommodates 9x 900µm trays or 18x 250µm trays, for a maximum of 144x
900µm heat shrink splices or 288x 250µm heat shrink splices. The position of
the fiber management system allows easy access for the routing of fiber on to
the trays. The trays and fiber-optic routing modules are white, making it easy
to see the color of the fiber elements as they are routed through the positive
fiber management system. Fiber slot retaining blocks guide the fiber elements
on to the IR system; the foam pad on the retainer is partially cut through to
accommodate a range of fiber counts. A loop storage basket provides space
for the storage of fiber loops. Designed with eight dual input/output ports; four
across the bottom, two on top and two on each side; each port will
accommodate a 20 or 25 mm cable gland.
Short Description
S5 Splice Enclosure, 216 Fiber Splice, Wall Mounted, Gray, 1/pkg
Global Part Name
MDU-S5-LLWX
Technical Description
The S5 enclosure is configured with the HellermannTyton 250µm IR
Management System. The management system is mounted on an aluminium
backplane which accommodates 18 SE-IR trays giving a maximum of 216 3A
fibre splices The position of the fibre management system allows for easy
access for the routing of fibre on to the trays. The trays and fibre optic routing
modules are white which makes it easy to see the colour of the fibre elements
as they are routed through the positive fibre management system. Fibre slot
retaining blocks guide the fibre elements on to the IR system; the foam pad on
the retainer is partially cut through to accommodate a range of fibre counts. All
IR system cover plates are coloured blue identifying them as removable parts
allowing access to the fibre, the fibre retaining block and tray retaining clips
are coloured red to aid in identification if they are dropped. Loop storage
management for both incoming and outgoing cables is provided by lateral
cable managers and loop storage bobbins located on either side of the fibre
management trays. The enclosure is 568 x 375 x 165mm (H x W x D) and
manufactured in light grey (RAL 7035), UV stable ABS (Acrylonitrile Butadiene
Styrene) and has an IP54, IK08 and V0 rating. Designed with 8 dual
input/output ports, 4 across the bottom, 2 on the top and 2 on each side, each
port will accommodate a 20 or 25mm cable gland. A 100 x 25mm inset
position on the front cover allows for a customer logo to be moulded in to the
enclosure.
Port Count
8
Variant
Indoor/Outdoor FTTx Enclosures
Width W (Imperial)
9.72
