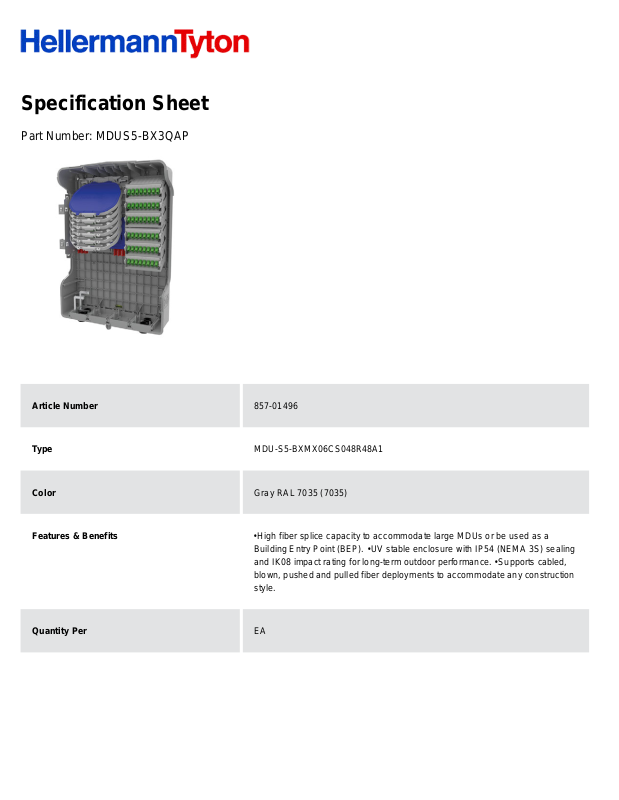

Specification Sheet
Part Number:
MDUS5-BX3QAP
Article Number
857-01496
Type
MDU-S5-BXMX06CS048R48A1
Color
Gray RAL 7035 (7035)
Features & Benefits
•
High fiber splice capacity to accommodate large MDUs or be used as a
Building Entry Point (BEP). •
UV stable enclosure with IP54 (NEMA 3S) sealing
and IK08 impact rating for long-term outdoor performance. •
Supports cabled,
blown, pushed and pulled fiber deployments to accommodate any construction
style.
Quantity Per
EA
Product Description
The large S5 enclosure is for wall-mount distribution, configured with the
HellermannTyton IR Management System. The management system
accommodates 9x 900µm trays or 18x 250µm trays, for a maximum of 144x
900µm heat shrink splices or 216x 250µm heat shrink splices. The position of
the fiber management system allows easy access for the routing of fiber on to
the trays. The trays and fiber-optic routing modules are white, making it easy
to see the color of the fiber elements as they are routed through the positive
fiber management system. Fiber slot retaining blocks guide the fiber elements
on to the IR system; the foam pad on the retainer is partially cut through to
accommodate a range of fiber counts. Fiber management cassettes are fitted
with LC/APC simplex adapters and pigtails to provide customer connection
points. The LC/APC pigtails are routed on to the fiber management trays to be
spliced to the incoming fiber. A loop storage basket provides space for the
storage of fiber loops. Designed with eight dual input/output ports; four across
the bottom, two on the top and two on each side; each port will accommodate
a 20 or 25 mm cable gland.
Short Description
S5 Splice & Patch Enclosure, 144 Fiber Splice, 48 LC/APC Pigtails, Wall
Mounted, Gray, 1/pkg
Global Part Name
MDU-S5-BXMX06CS048R48A1
Technical Description
The S5 enclosure is configured with the HellermannTyton 900µm IR
Management System. The management system is mounted on an aluminium
backplane which accommodates 6 900µm trays giving a maximum of 72
900µm 3A fibre splices. The position of the fibre management system allows
for easy access for the routing of fibre on to the trays. The trays and fibre optic
routing modules are white which makes it easy to see the colour of the fibre
elements as they are routed through the positive fibre management system.
Fibre slot retaining blocks guide the fibre elements on to the IR system; the
foam pad on the retainer is partially cut through to accommodate a range of
fibre counts. All IR system cover plates are coloured blue identifying them as
removable parts allowing access to the fibre, the fibre retaining block and tray
retaining clips are coloured red to aid in identification if they are dropped. 6
fibre management cassettes are fitted with LC APC simplex adaptors and
pigtails to provide 48 customer connection points. The LC APC pigtails are
routed on to the fibre management trays to be spliced to the incoming fibre. A
loop storage basket provides space for the storage of fibre loops. The
enclosure is 568 x 375 x 165mm (H x W x D) and manufactured in light grey
(RAL 7035), UV stable ABS (Acrylonitrile Butadiene Styrene) and has an IP54,
IK08 and V0 rating. Designed with 8 dual input/output ports, 4 across the
bottom, 2 on the top and 2 on each side, each port will accommodate a 20 or
25mm cable gland. A 100 x 25mm inset position on the front cover allows for a
customer logo to be moulded in to the enclosure.
Port Count
8
