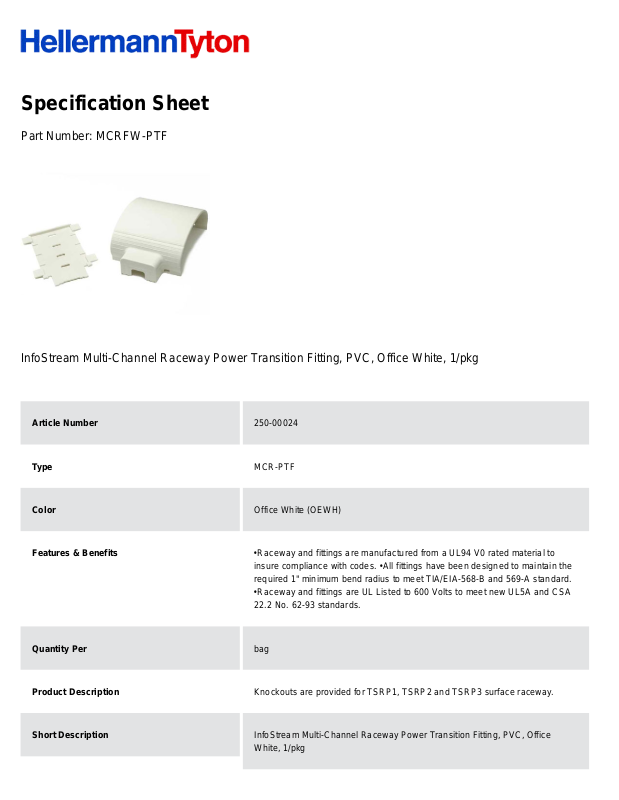

Specification Sheet
Part Number:
MCRFW-PTF
InfoStream Multi-Channel Raceway Power Transition Fitting, PVC, Office White, 1/pkg
Article Number
250-00024
Type
MCR-PTF
Color
Office White (OEWH)
Features & Benefits
•
Raceway and fittings are manufactured from a UL94 V0 rated material to
insure compliance with codes. •
All fittings have been designed to maintain the
required 1" minimum bend radius to meet TIA/EIA-568-B and 569-A standard.
•
Raceway and fittings are UL Listed to 600 Volts to meet new UL5A and CSA
22.2 No. 62-93 standards.
Quantity Per
bag
Product Description
Knockouts are provided for TSRP1, TSRP2 and TSRP3 surface raceway.
Short Description
InfoStream Multi-Channel Raceway Power Transition Fitting, PVC, Office
White, 1/pkg
Global Part Name
MCR-PTF-PVC-WH
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
UL 94 V0
Halogen free
No
Operating Temperature (Metric)
+122°F (+50°C)
Reach Complaint(Article 33)
No
ROHS Complaint
Yes
UL Listed (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
Customs Number
3925900000
